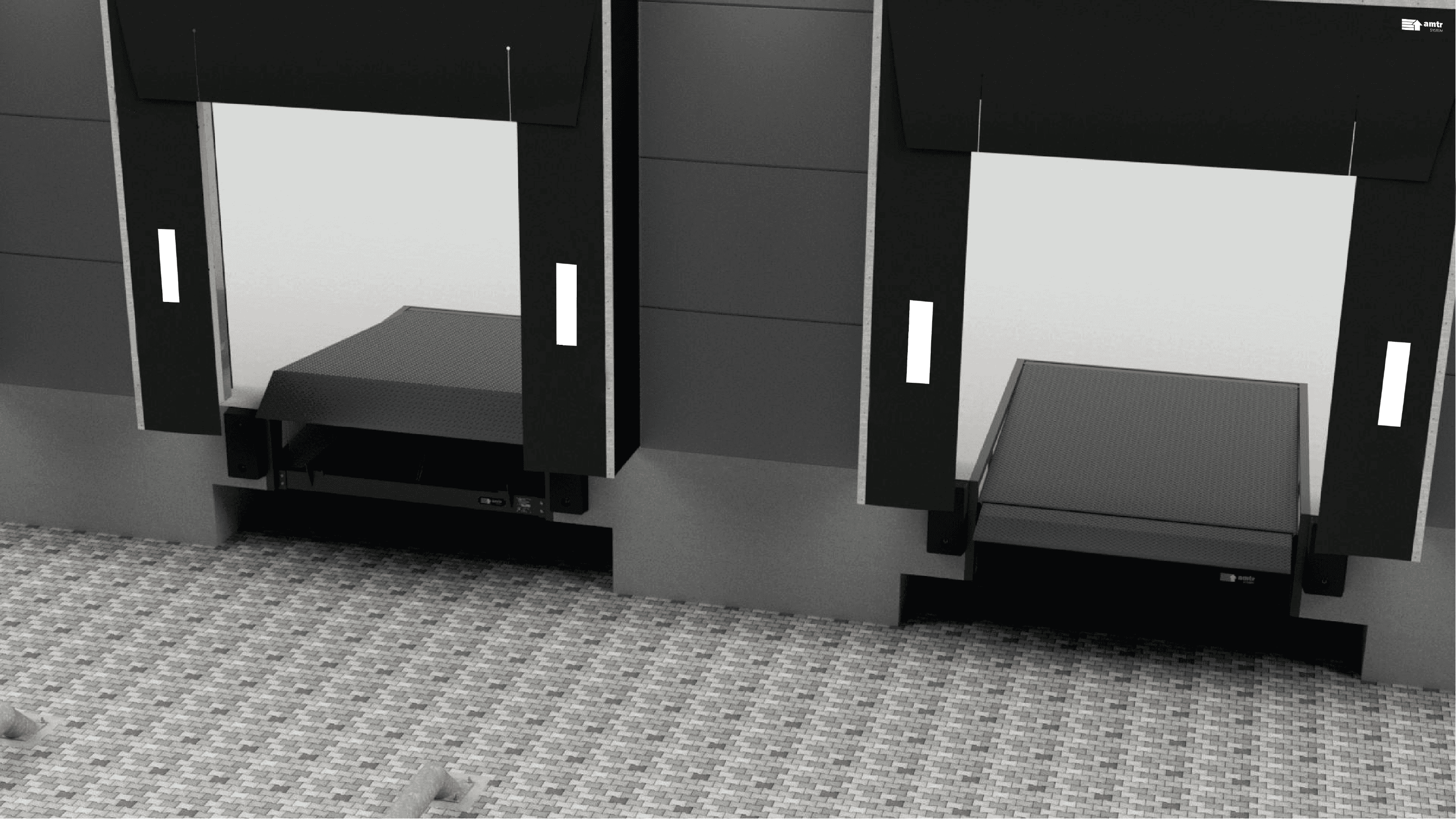

Designed for pallet handling
Robust steel structure
Quick and safe loading

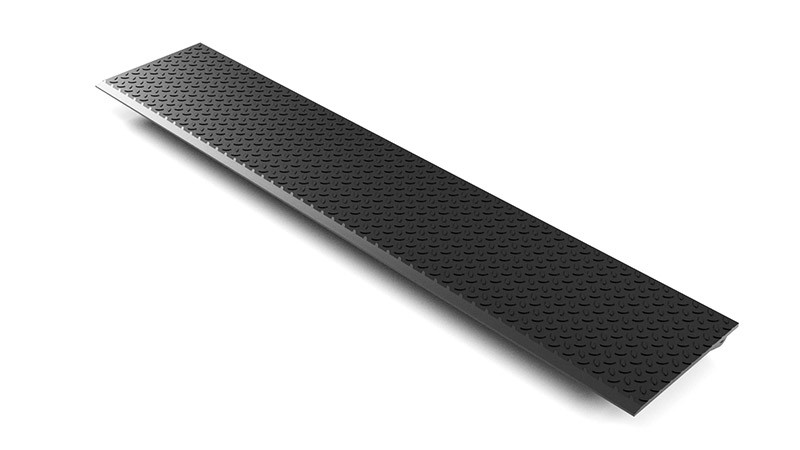

Anti-slip layer for leveller contact elements
Chamfered lip
One-button control
Possibility of coupling the ramp with the door and pneumatic seal
Easy installation
Possibility to adapt the product to individual requirements
Technical data | Specification |
|---|---|

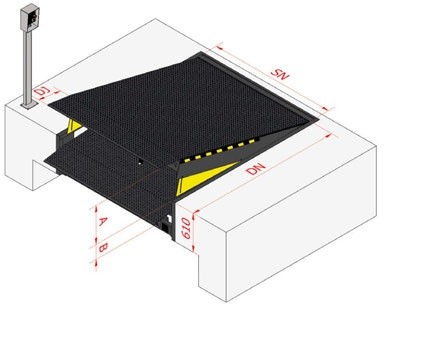

Nominal length (NL) | 2000, 2500, 3000, 3500, 4000 mm |
Nominal width (NW) | 2000, 2250 mm |
Structural height | 610 mm |
Access nominal length (LL) | 400, 500 mm |
Platform thickness | 6/8 mm |
Nominal load-bearing capacity | 6, 10, 12 tonnes (60, 100, 120 kN) |
Operating ranges above level (A) | from 0 to 290 mm |
Operating ranges below level (B) | from 0 to - 350 mm |
Supply voltage | 400 V |
Engine power | 1,1 kW |
Control voltage | 24 VDC |
Type of protection | IP54 |
Tank capacity | 5 dm³ |
Operating medium | MOBIL DTE 10 EXCEL 15 |
Operating pressure | 130 bar |
Standard colours | RAL 9005 (two-component resin-based paint) |
HYDRAULIC DRIVE
the drive system of the leveller consists of a set of cylinders responsible for lifting the platform and swinging the lip,
the lip is lifted by a separate cylinder, supplied separately from the hydraulic unit,
closed hydraulic system,
smooth adaptation to the vehicle height during loading.
CONTROL

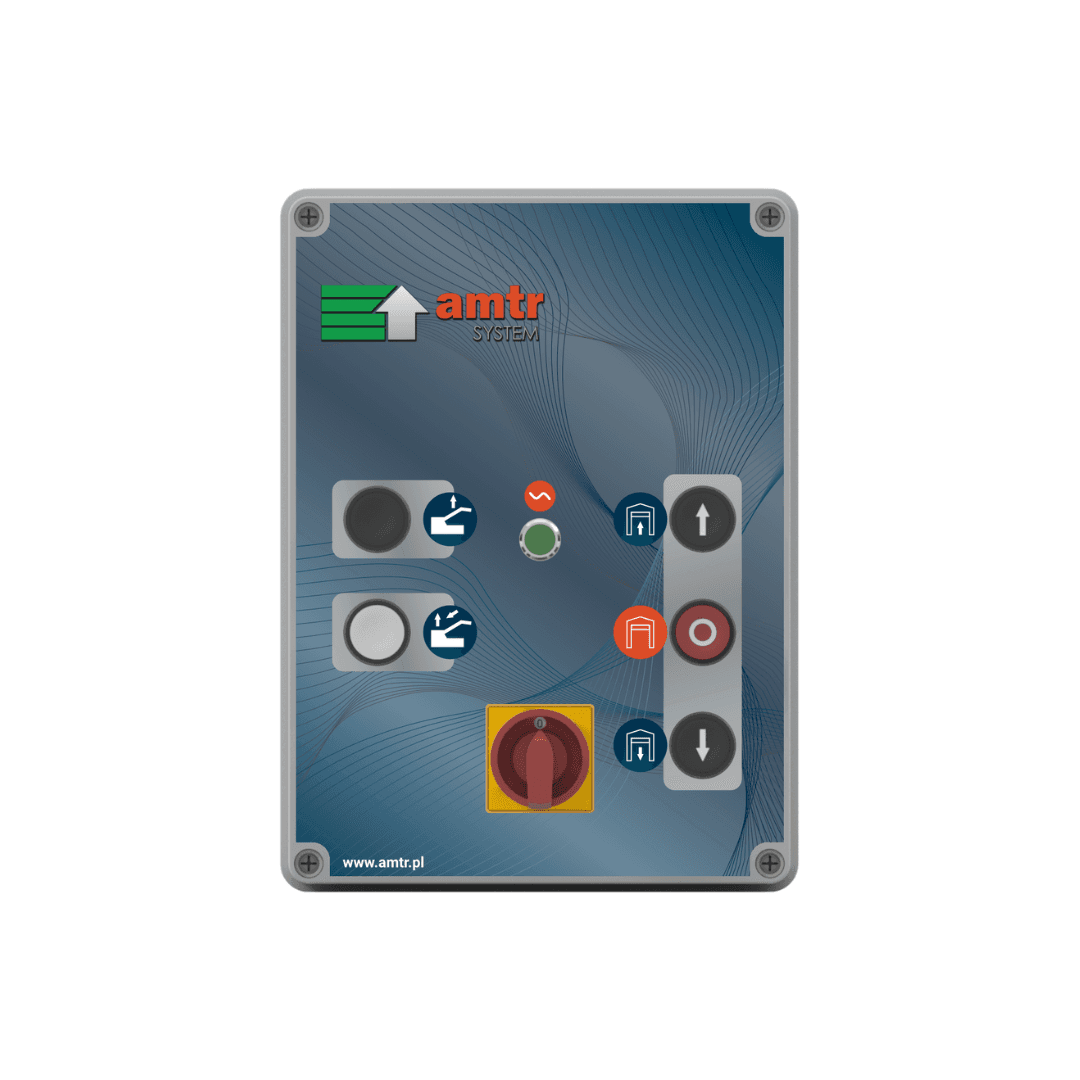

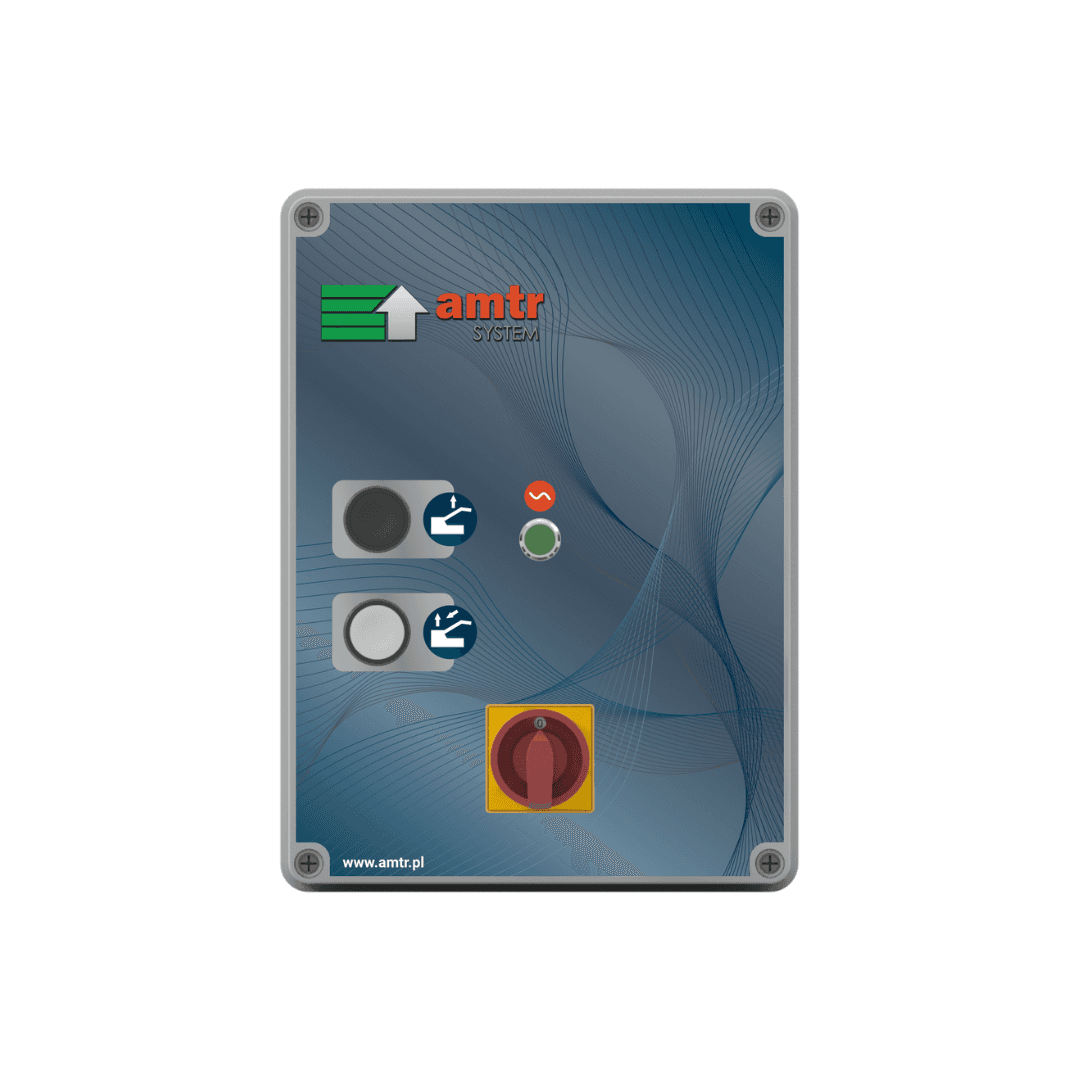

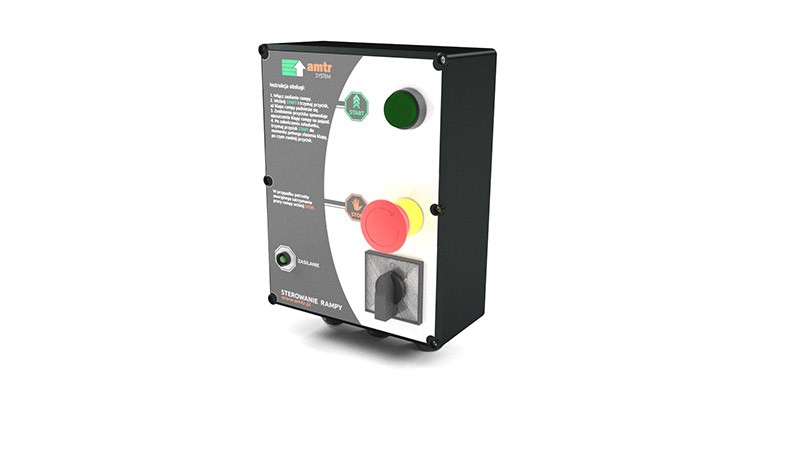

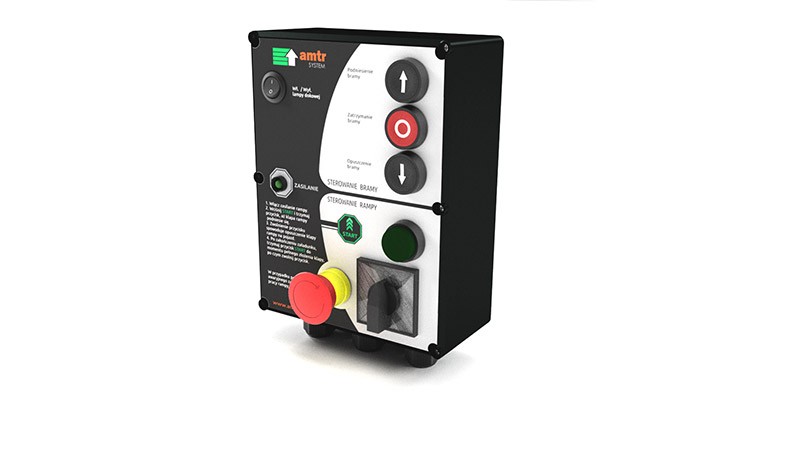

A standard SL100 one-button is inlcuded.It is possible to combine the ramp control system with a door control system.The entire SL100 control series can also be coupled with the pneumatical seal AMTR-P.

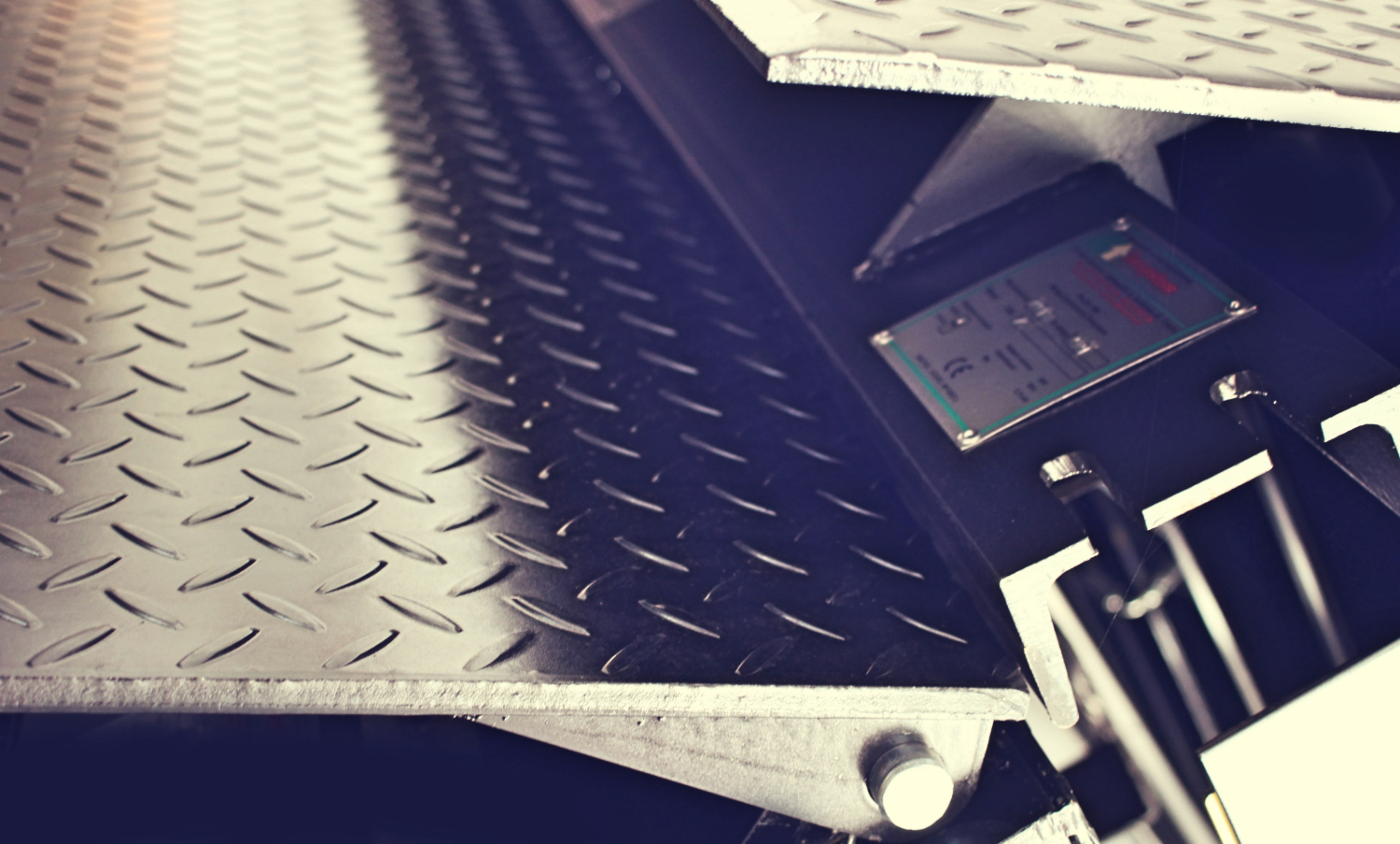

LIP TYPES
The lip of the AMTR-K PRO is made of high-grade sheet metal teardrop plate with a thickness of 12 mm and has a reliable hinge system that works even with heavy contamination. In addition, the lip is beveled, which prevents damage to the wheels on the handling equipment.
SAFETY DEVICES
protection in the event of power failure or use of the emergency stop (will stop in the current position),
side black and yellow hazard markings,
foot protection along the entire length of the platform.
STANDARD EQUIPMENT
electrical installation,
hydraulic system,
control box,
swing lip in the straight version,
platform varnished RAL 9005,
CE declaration of conformity.
ADDITIONAL OPTIONS
dock leveller made in other dimensions and capacities,
swing lip with a length of 1000 mm,
additional anti-slip coating of the leveller contact elements,
leveller structural elements painted in any RAL colour or hot-dip galvanised,
other than standard pull-out lip shape,
normal or reinforced wheel stops of non-standard dimensions to absorb the impact,
dock leveller in thermally insulated version,
sealing in the event of an opening under the vehicle's hydro flap, powder coating,
leveller structure and all hydraulic components made of acid-resistant steel.
