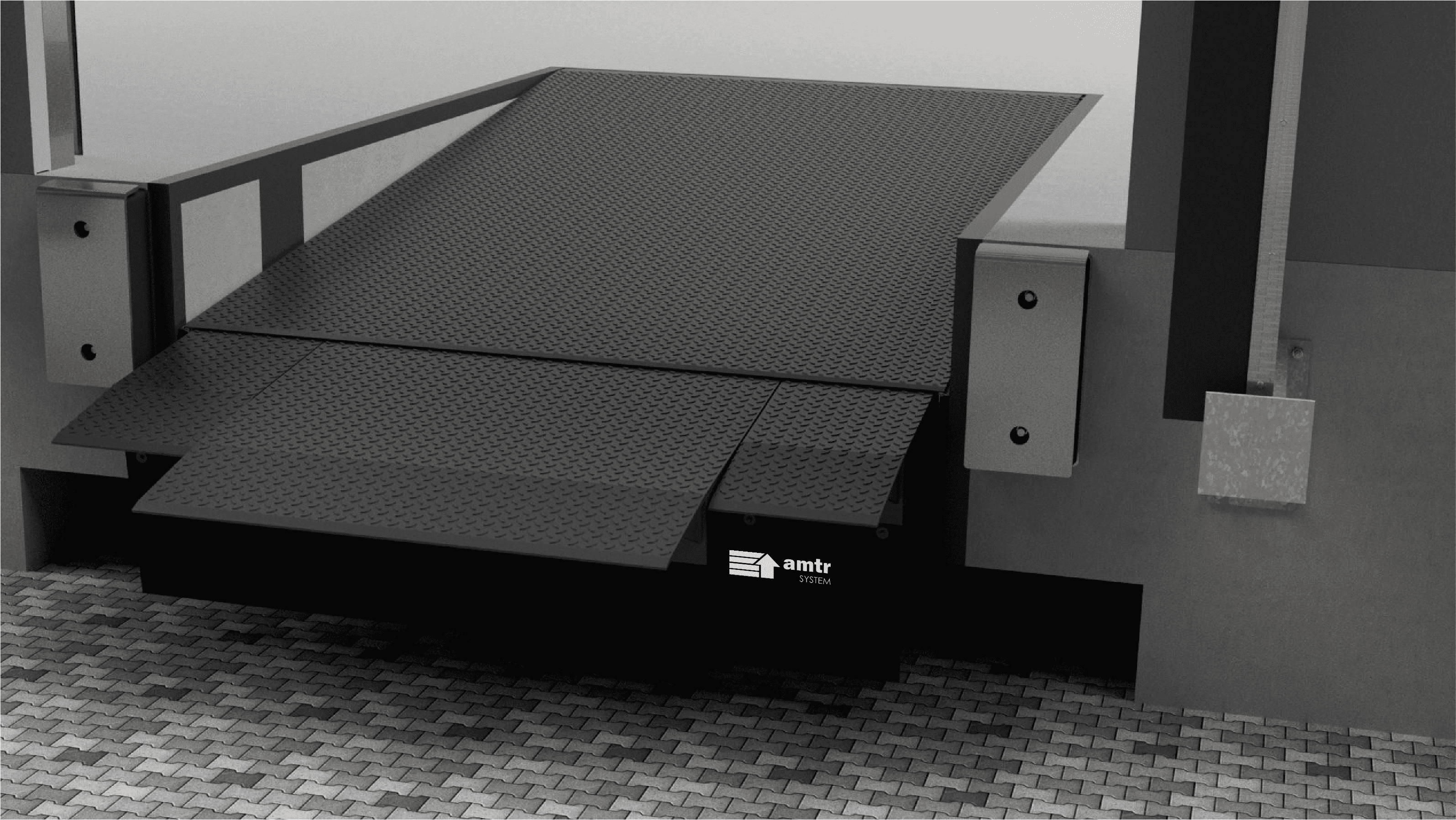

Strong and robust steel structure

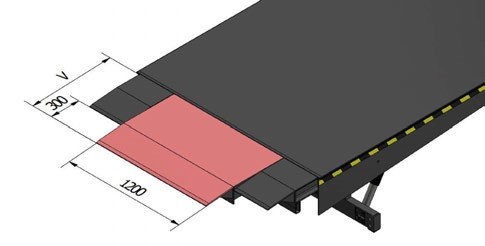

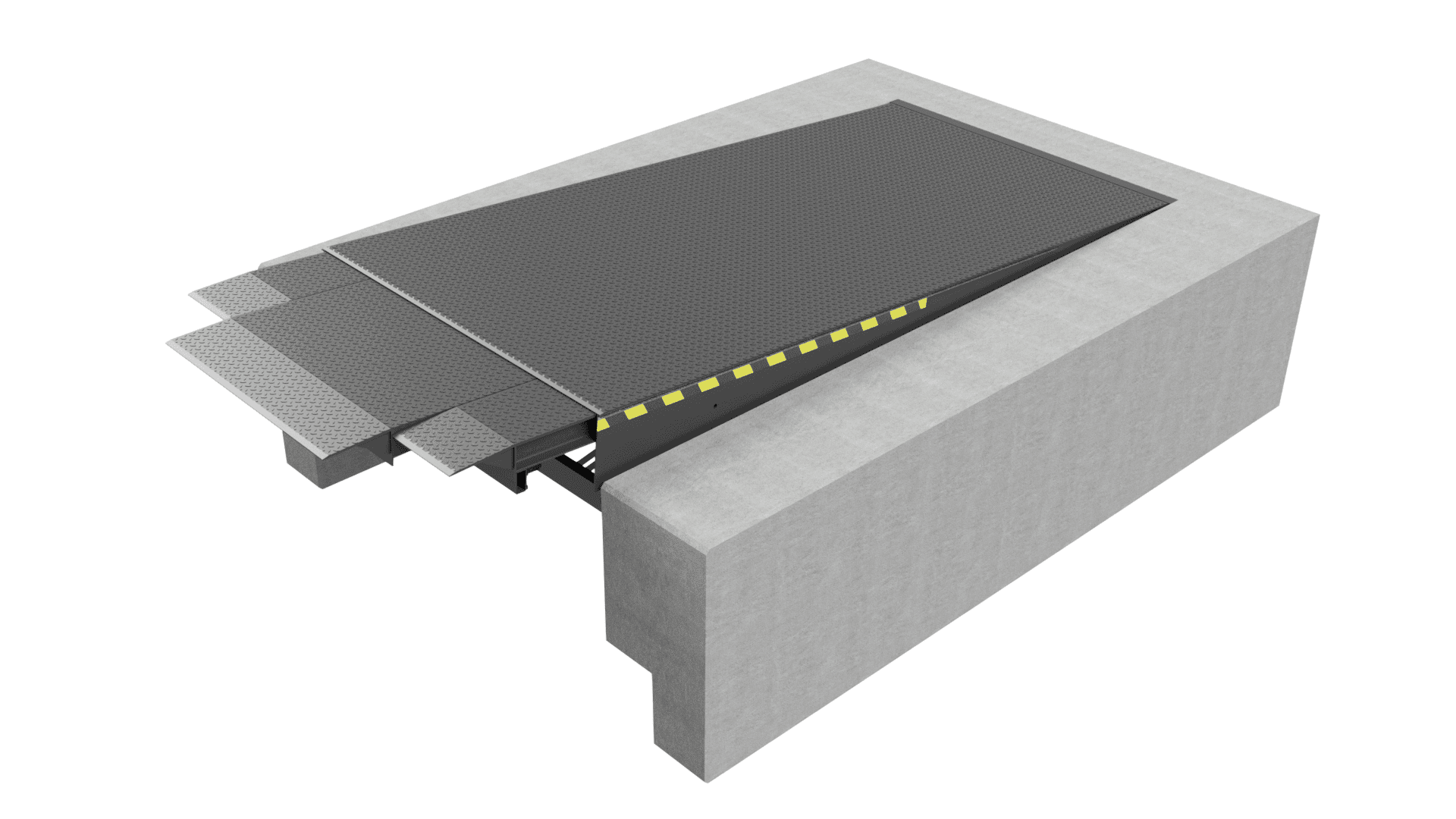

The telescopic lip of the dock leveller is divided into two separate segments
Handling of vans and lorries
Quick and safe loading
Anti-slip layer for leveller contact elements
Chamfered lip
Four-button control + load capacity selection switch
Possibility of coupling the ramp with the door and pneumatic seal
Easy installation
Possibility to adapt the product to individual requirements

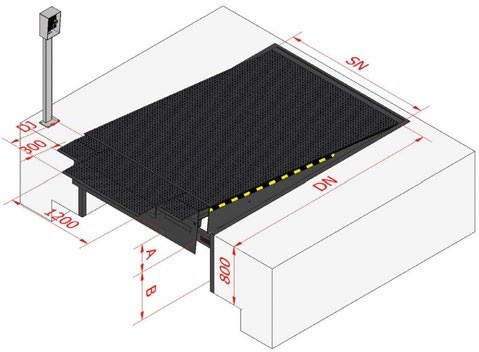

Technical data | Specification |
|---|---|
Nominal length (NL) | 3000, 3500, 4000 mm |
Nominal width (NW) | 2000 mm |
Structural height | 800/900/950 mm |
Access nominal length (LL) | 1000 mm |
Platform thickness | 8/10 mm |
Nominal load-bearing capacity | 2/6 tonnes (20/60 kN) |
Operating ranges above level (A) | from 0 to 415 mm |
Operating ranges below level (B) | from 0 to - 530 mm |
Supply voltage | 400 V |
Engine power | 1,5 kW |
Control voltage | 24 VDC |
Type of protection | IP54 |
Tank capacity | 7 dm³ |
Operating medium | MOBIL DTE 10 EXCEL 15 |
Operating pressure | 150 bar |
Standard colours | RAL 9005 (two-component resin-based paint) |
HYDRAULIC DRIVE
the drive system consists of a set of cylinders allowing for independent lip central section extension,
the lip is extended by a separate cylinder, supplied separately from the hydraulic unit,
closed hydraulic system,
smooth adaptation to the vehicle height during loading.
CONTROL
The TL401 four-button control is included in the equipment. Intuitive control with mandatory selection of 20 kN or 60 kN and a button responsible for auto-return. It is possible to coupling of the ramp control system with the gate control. The series TL400 controls can additionally becoupled with the control of the pneumatic seal AMTR-P pneumatic seal control.
LIP TYPES

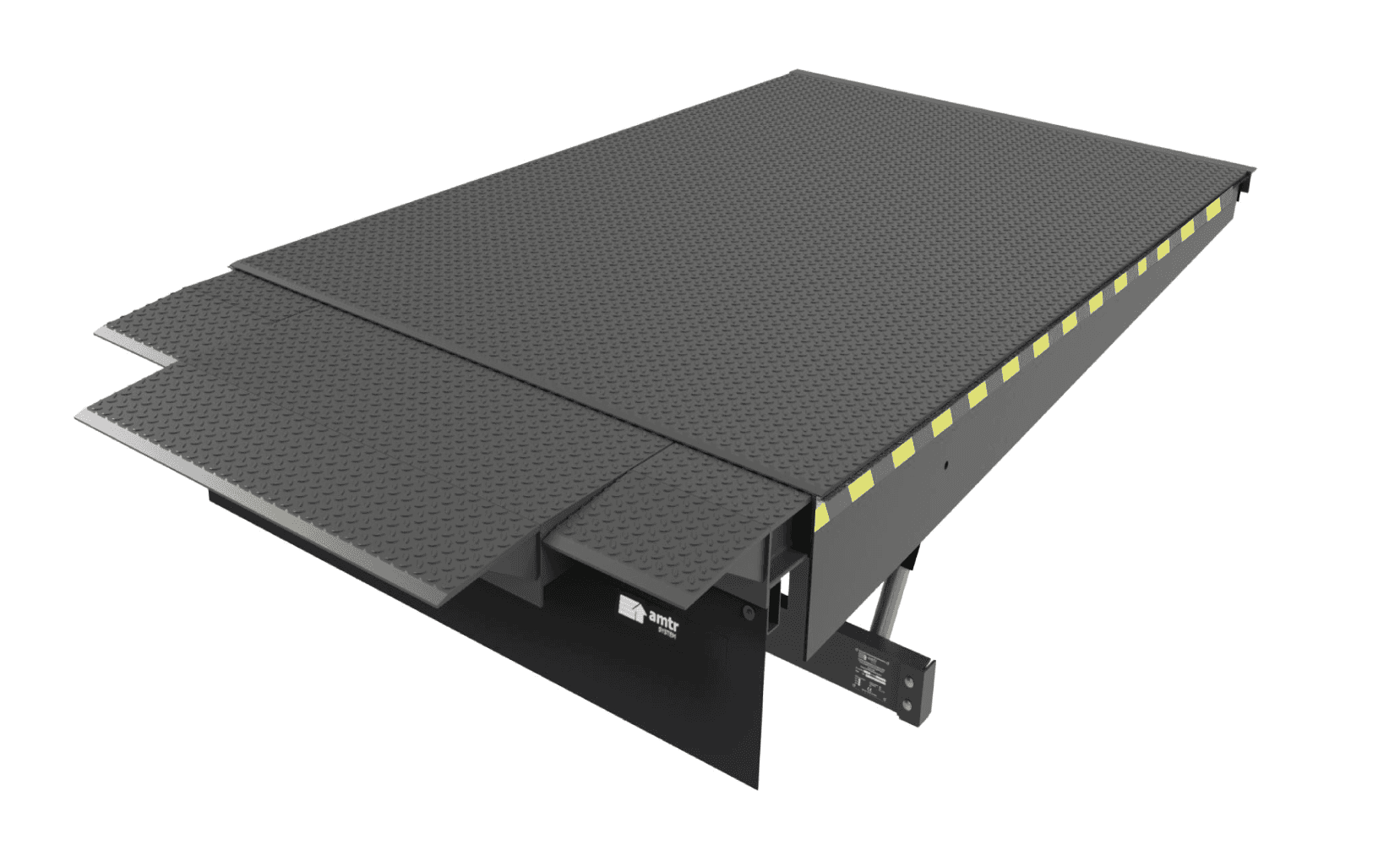

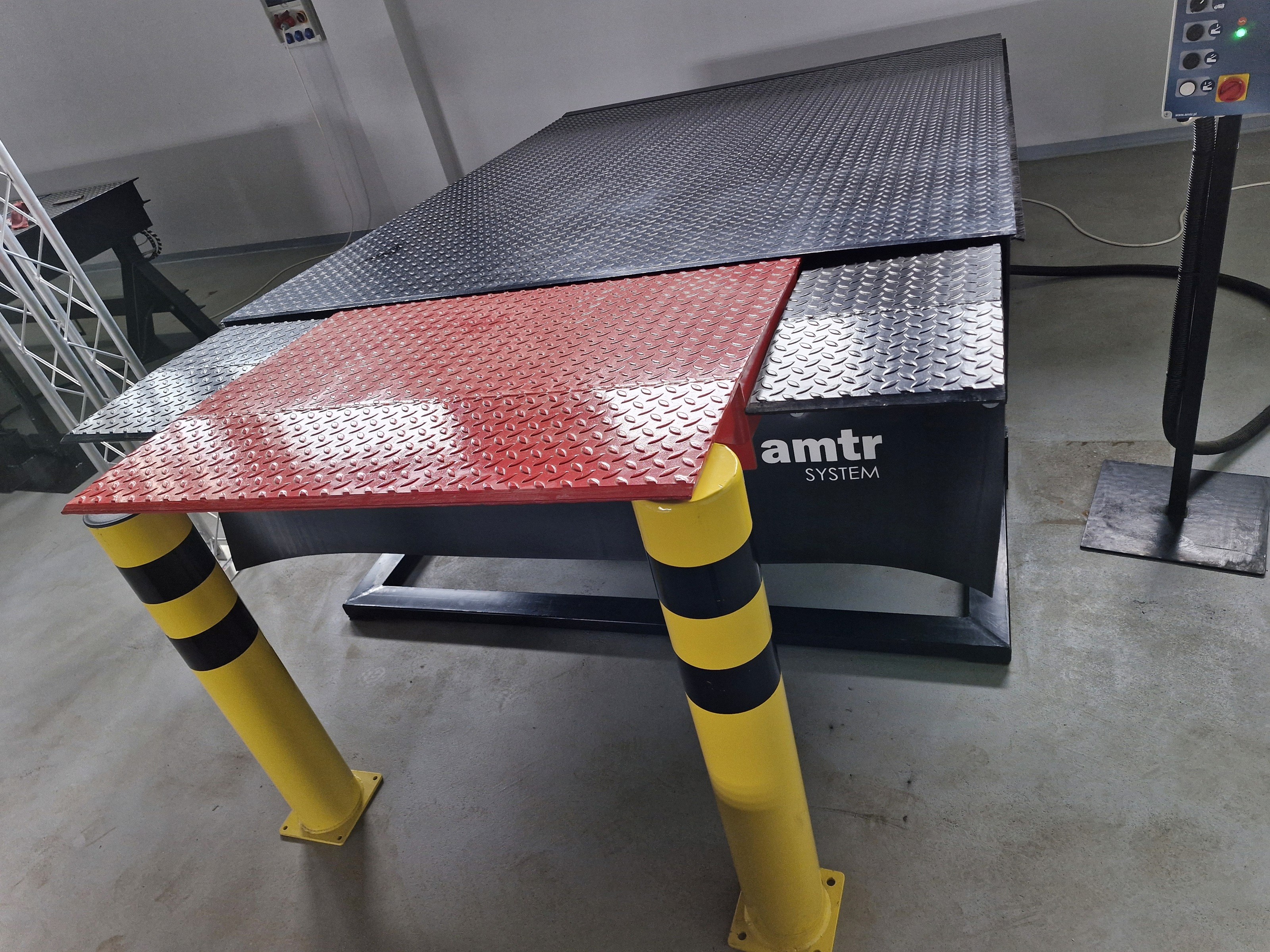

The telescopic lip in the AMTRV-CD dock leveller is manufactured from high quality 12 mm (12/14) corrugated sheet metal and fitted with a special, durable, contamination-resistant and maintenance-free telescopic mechanism. A system of simple, highly durable slides ensures its quiet and trouble-free operation. The AMTRV-CD dock leveller lip has a segmented design, allowing the operation of vehicles of different types, depending on the selected operating mode.
SAFETY DEVICES
protection in the event of power failure or use of the emergency stop (will stop in the current position),
side black and yellow hazard markings,
foot protection along the entire length of the platform.
STANDARD EQUIPMENT
electrical installation,
hydraulic system,
control box,
three-part telescopic lip,
platform varnished RAL 9005,
CE declaration of conformity.
ADDITIONAL OPTIONS
additional anti-slip coating of the leveller contact elements,
leveller structural elements painted in any RAL colour or hot-dip galvanised,
normal or reinforced wheel stops of non-standard dimensions to absorb the impact,
sealing in the event of an opening under the vehicle's hydro flap,
powder coating,
leveller structure and all hydraulic components made of acid-resistant steel.
