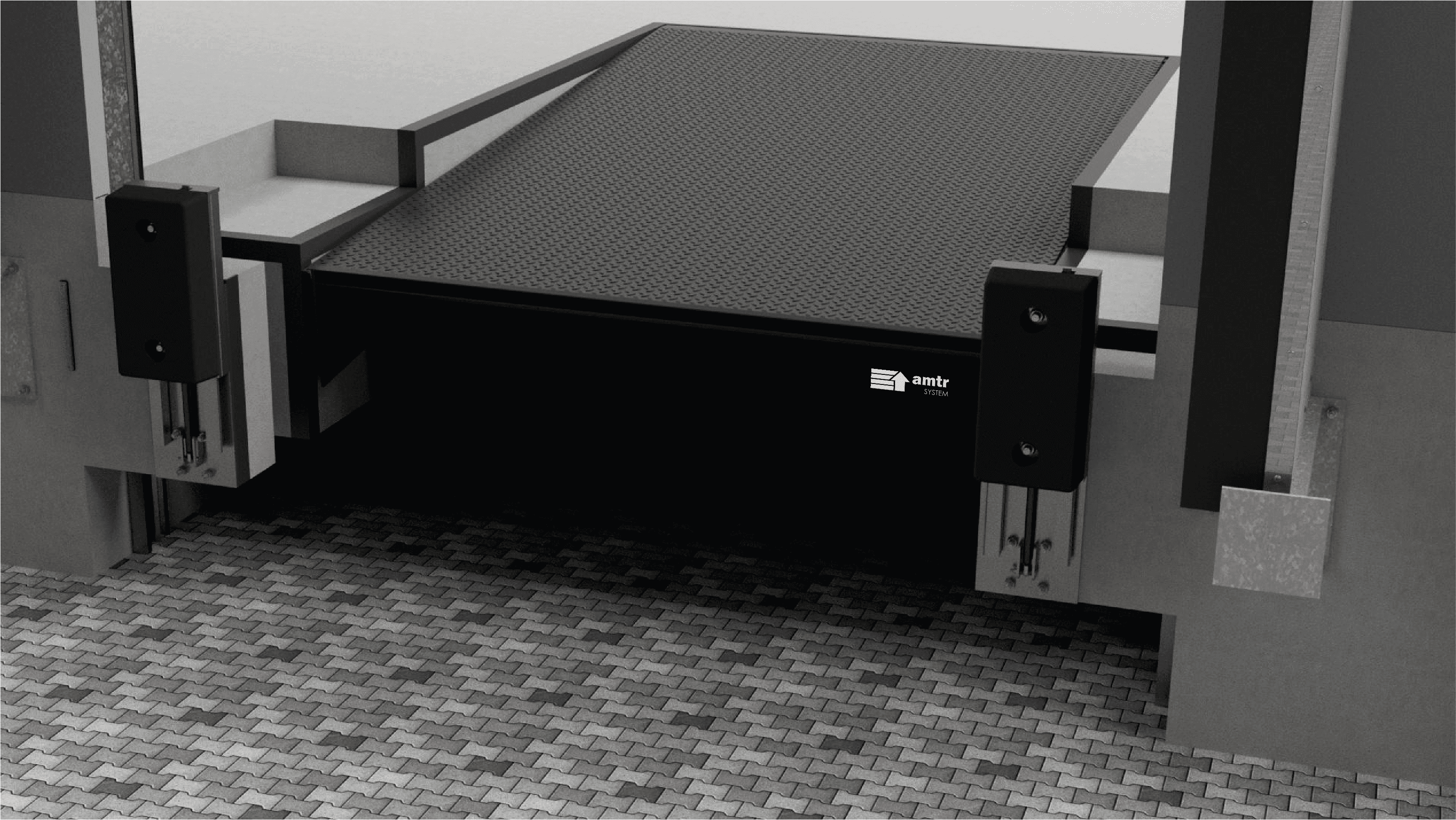

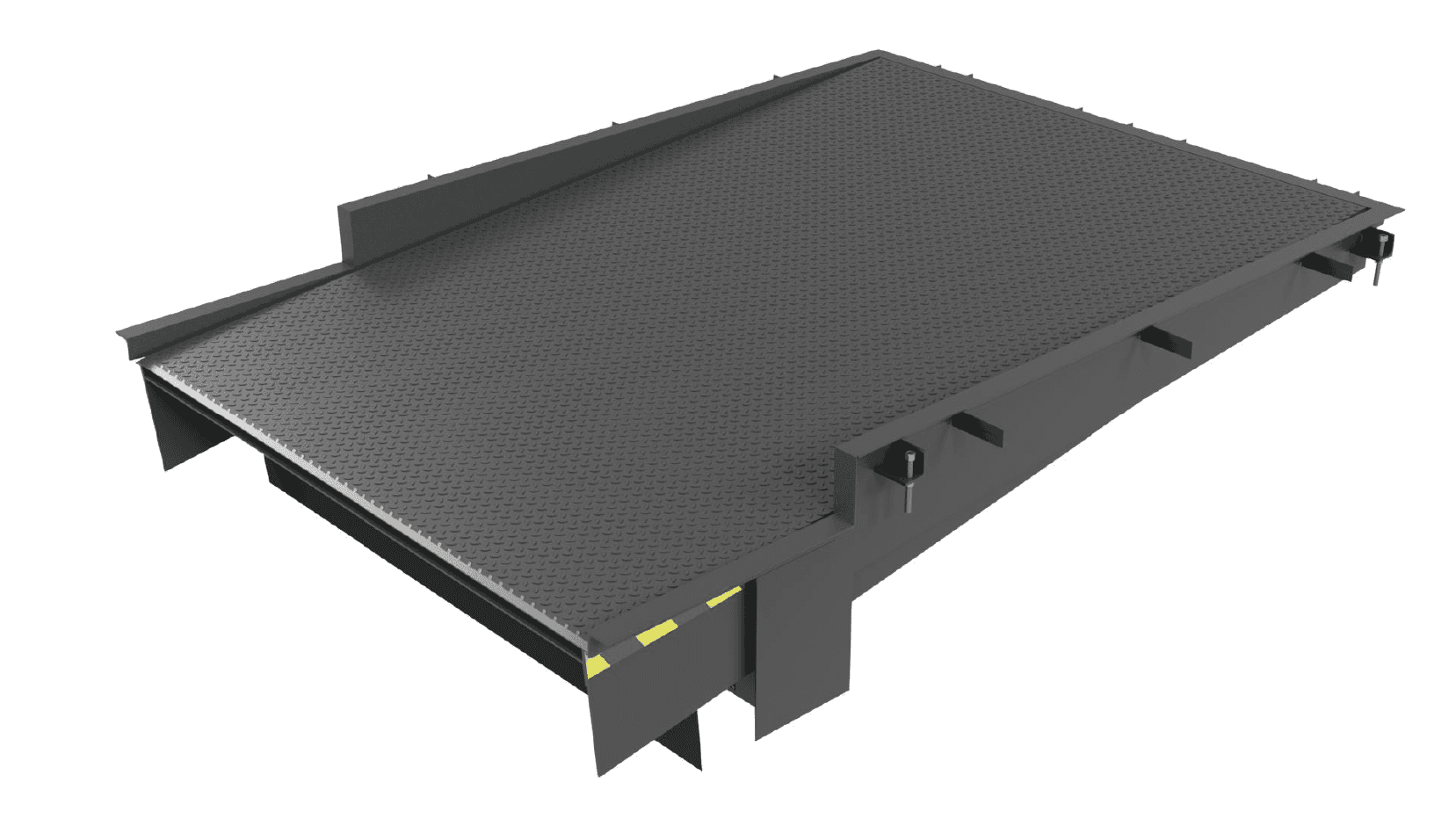

Robust steel structure
Quick and safe loading
Standstill below level 0
Anti-slip layer for leveller contact elements
Chamfered lip
Four-button control
Possibility of coupling the ramp with the door and pneumatic seal
Easy installation
Possibility to adapt the product to individual requirements

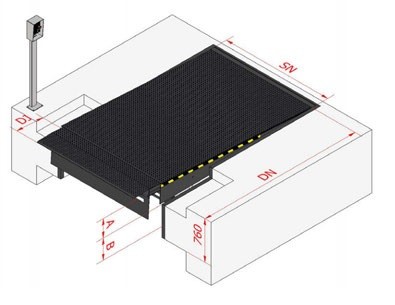

Technical data | Specification |
|---|---|
Nominal length (NL) | 3000, 3500, 4000 mm |
Nominal width (NW) | 2000, 2250 mm |
Structural height | 710 mm |
Access nominal length (LL) | 500, 1000 mm |
Platform thickness | 8/10 mm |
Nominal load-bearing capacity | 6, 10, 12 tonnes (60, 100, 120 kN) |
Operating ranges above level (A) | from 0 to 275 mm |
Operating ranges below level (B) | from 0 to - 425 mm |
Supply voltage | 400 V |
Engine power | 0,75 kW |
Control voltage | 24 VDC |
Type of protection | IP54 |
Tank capacity | 2,5 dm³ |
Operating medium | MOBIL DTE 10 EXCEL 15 |
Operating pressure | 140 bar |
Standard colours | RAL 9005 (two-component resin-based paint) |
HYDRAULIC DRIVE
the drive system consists of a set of cylinders allowing for fully independent lip extension and retraction,
the lip is extended by a separate cylinder, supplied separately from the hydraulic unit,
closed hydraulic system,
smooth adaptation to the vehicle height during loading.
CONTROL
Included is a four-button control TL301 enabling coupling with the door. The TL300 control series can be additionally coupled to the pneumatic seal control AMTR-P.

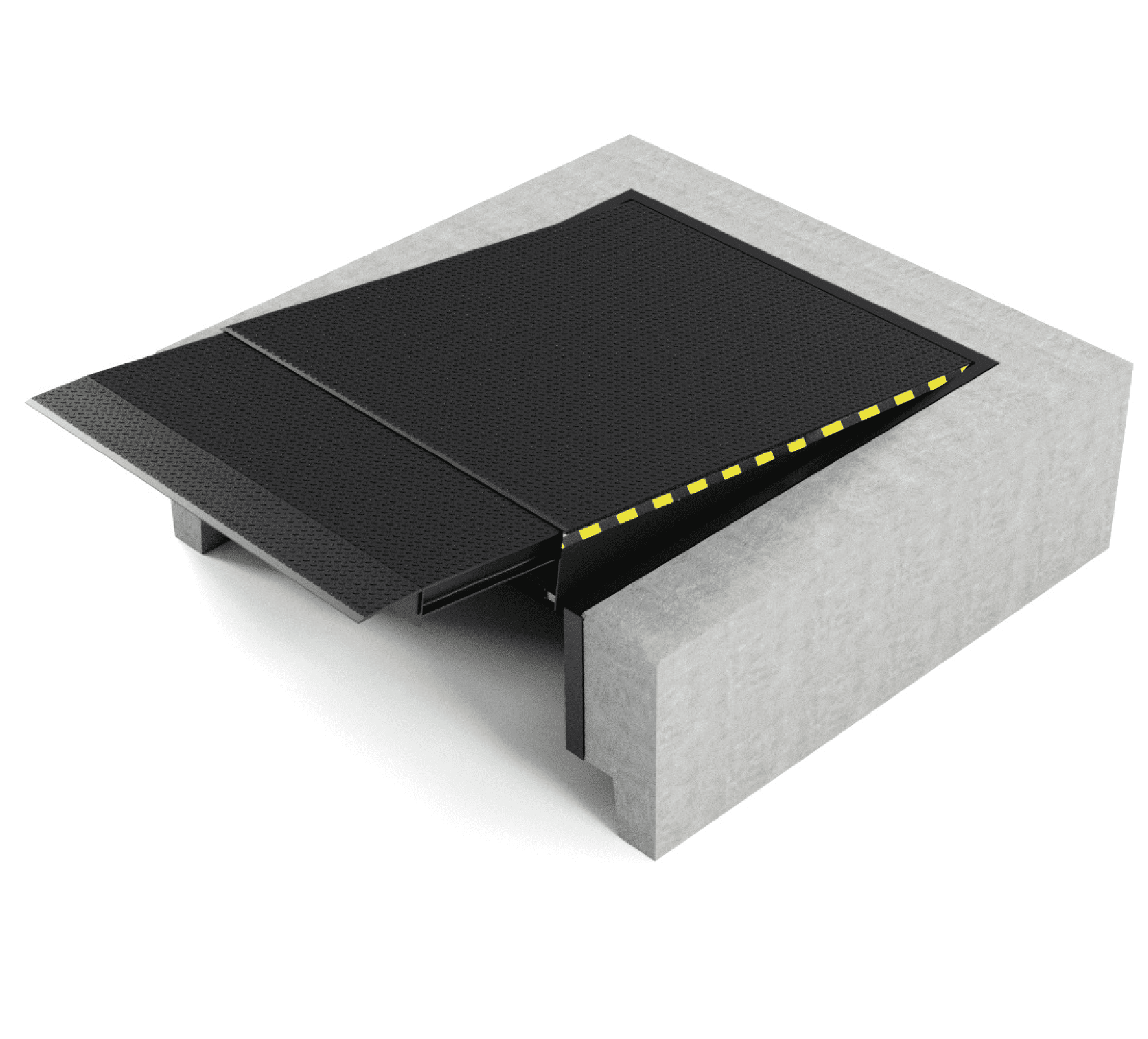

LIP TYPES
The lip of the AMTRV-ESS is manufactured from 12 mm (12/14 mm) high quality corrugated sheet metal with a robust, reliable and maintenance-free telescopic mechanism. The telescopic lip of the platform can be manufactured in two different shapes: a straight lip and a diagonal lip.
SAFETY DEVICES
protection in the event of power failure or use of the emergency stop (will stop in the current position),
side black and yellow hazard markings,
foot protection along the entire length of the platform.
STANDARD EQUIPMENT
electrical installation,
hydraulic system,
control box,
telescopic lip in the straight version,
platform varnished RAL 9005,
CE declaration of conformity.
ADDITIONAL OPTIONS
leveller structural elements painted in any RAL colour or hot-dip galvanised,
other than standard telescopic lip shape,
normal or reinforced wheel stops of non-standard dimensions to absorb the impact,
sealing in the event of an opening under the vehicle's hydro flap,
powder coating,
leveller structure and all hydraulic components made of acid-resistant steel.
