Key Features

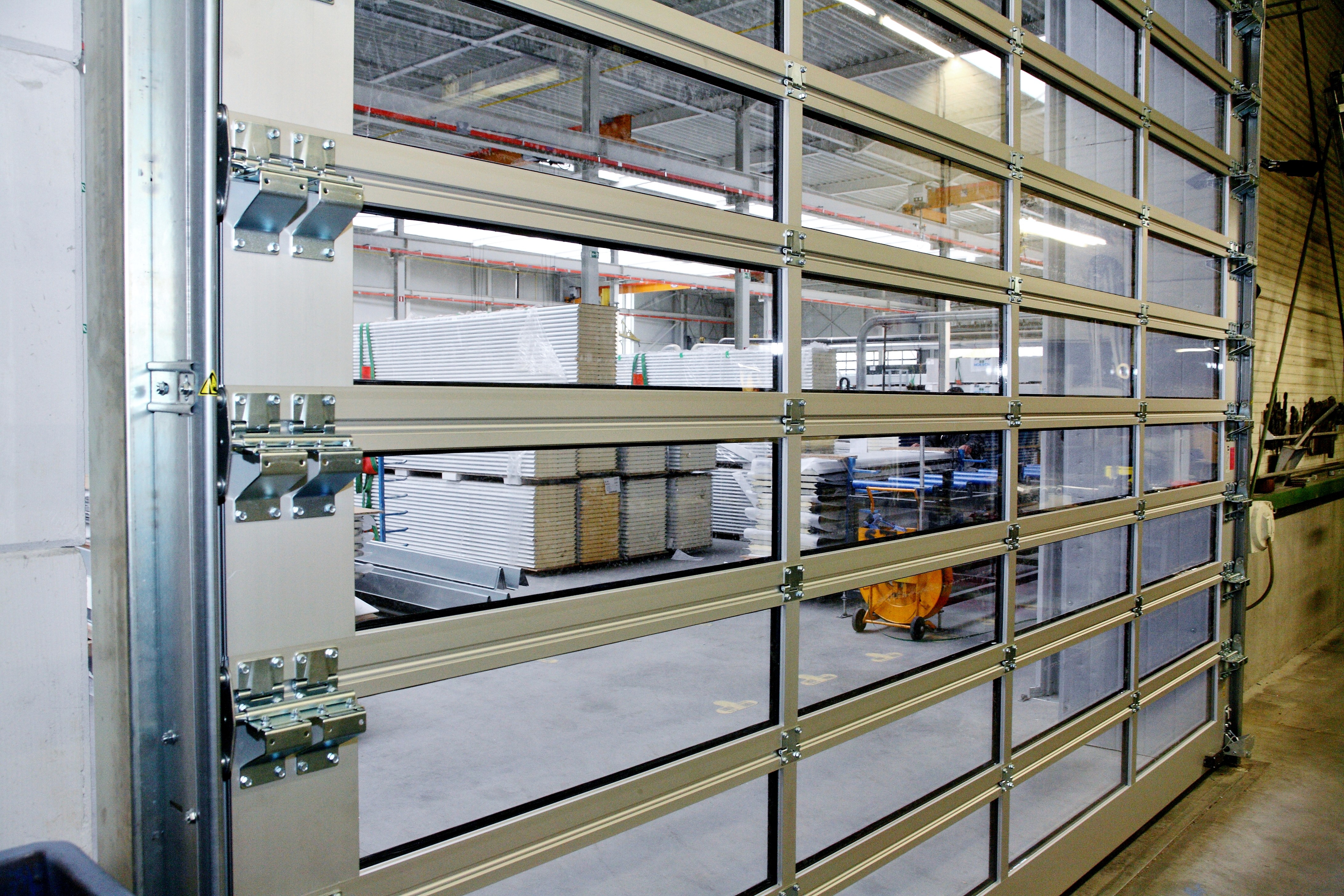

Modular Aluminium Frame Design:
The A40 consists of horizontal aluminium frame sections that can be individually configured with transparent or solid panel inserts. Every door is custom-designed, making each unit architecturally unique.
Wide Range of Glazing Options:
Choose from acrylic, polycarbonate, safety glass, perforated aluminium, or insulated aluminium infill panels. Multiple light transmission levels and finishes are available, including Opal 30%, Opal 80%, Pearl, Smoke, and tinted safety glass.
Individual Styling and Colour Options:
Frames are made of anodised aluminium (E6EV1) by default
Optionally powder-coated in any RAL colour for architectural integration
Possibility to combine with solid bottom S40 steel section for durabilit
Optimised Daylight and Energy Efficiency:
By maximizing transparent surface areas, the A40 reduces the need for artificial lighting, generating energy savings while improving interior comfort and visibility
Durable and Weather-Resistant:
Made with corrosion-resistant, high-grade aluminium profiles and durable panel materials suitable for intensive use in demanding environments.
Guide Systems (Lifting Options)
Standard lift
High lift
Vertical lift
Low headroom (rear or front mounted spring system)
Inclined tracks and custom configurations available
Each door is equipped with finger protection as standard, regardless of size or height, ensuring a safe operating environment for users.
Applications
The AMTR A40 is is especially suited for:

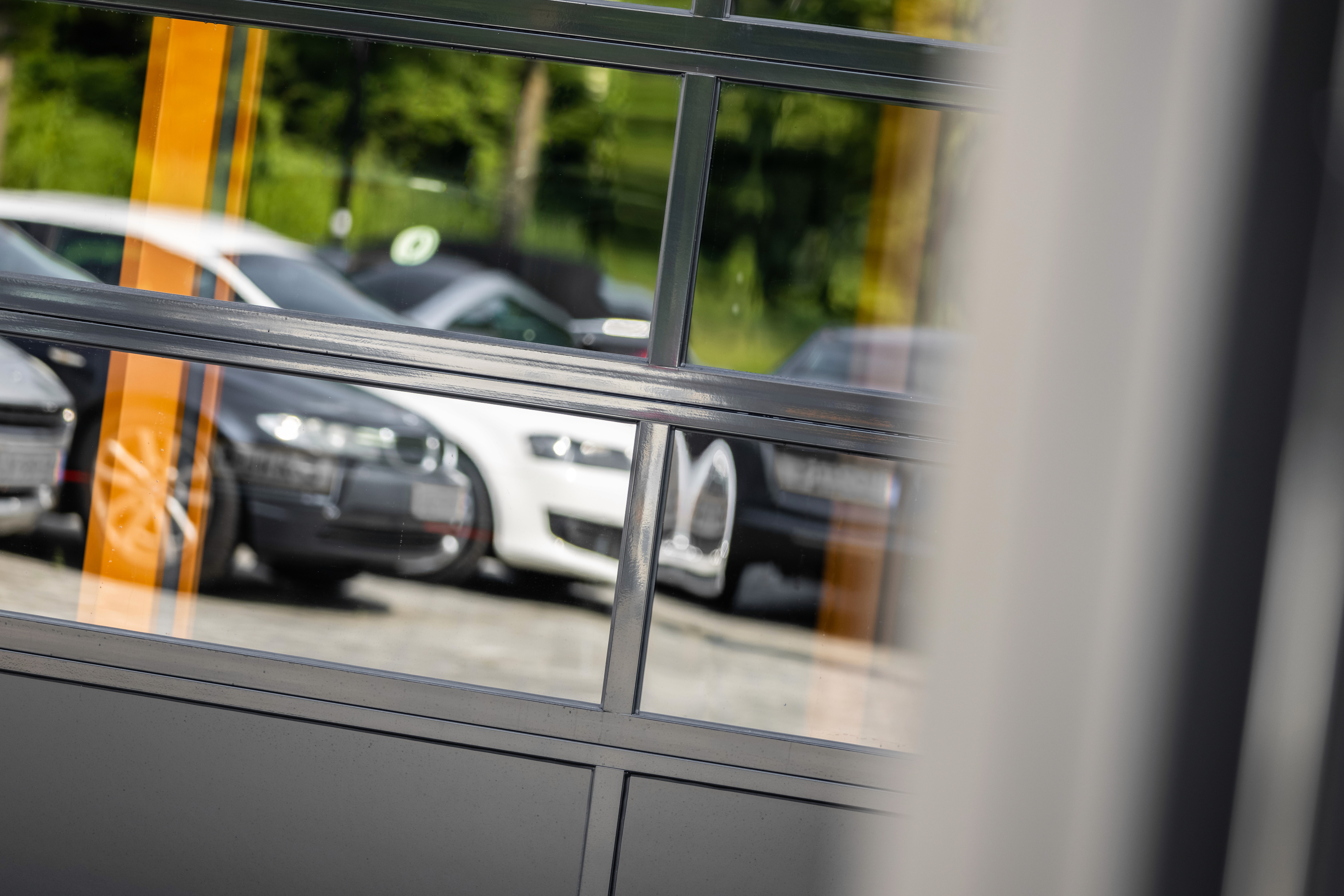

Automotive showrooms

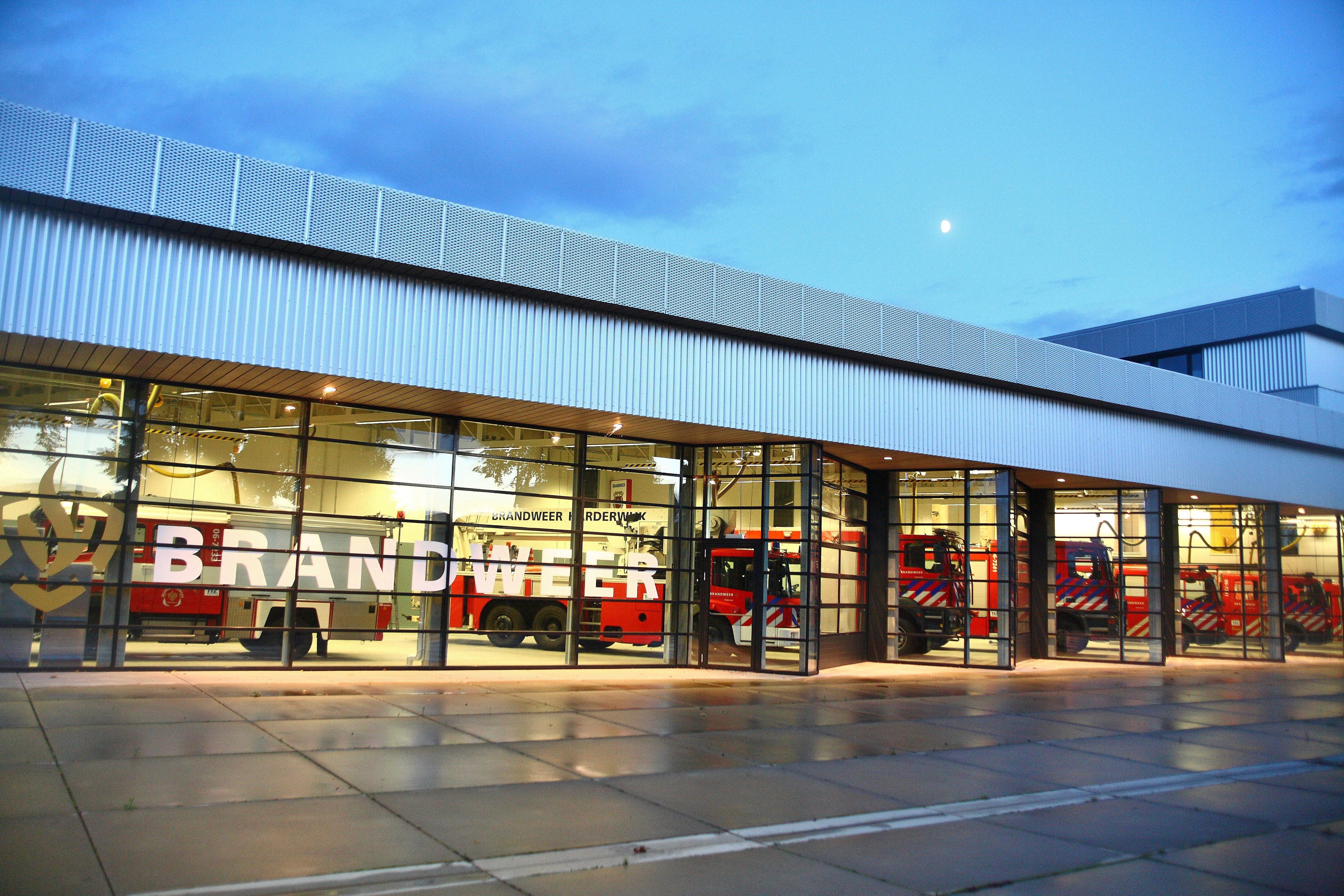

Fire stations and emergency services

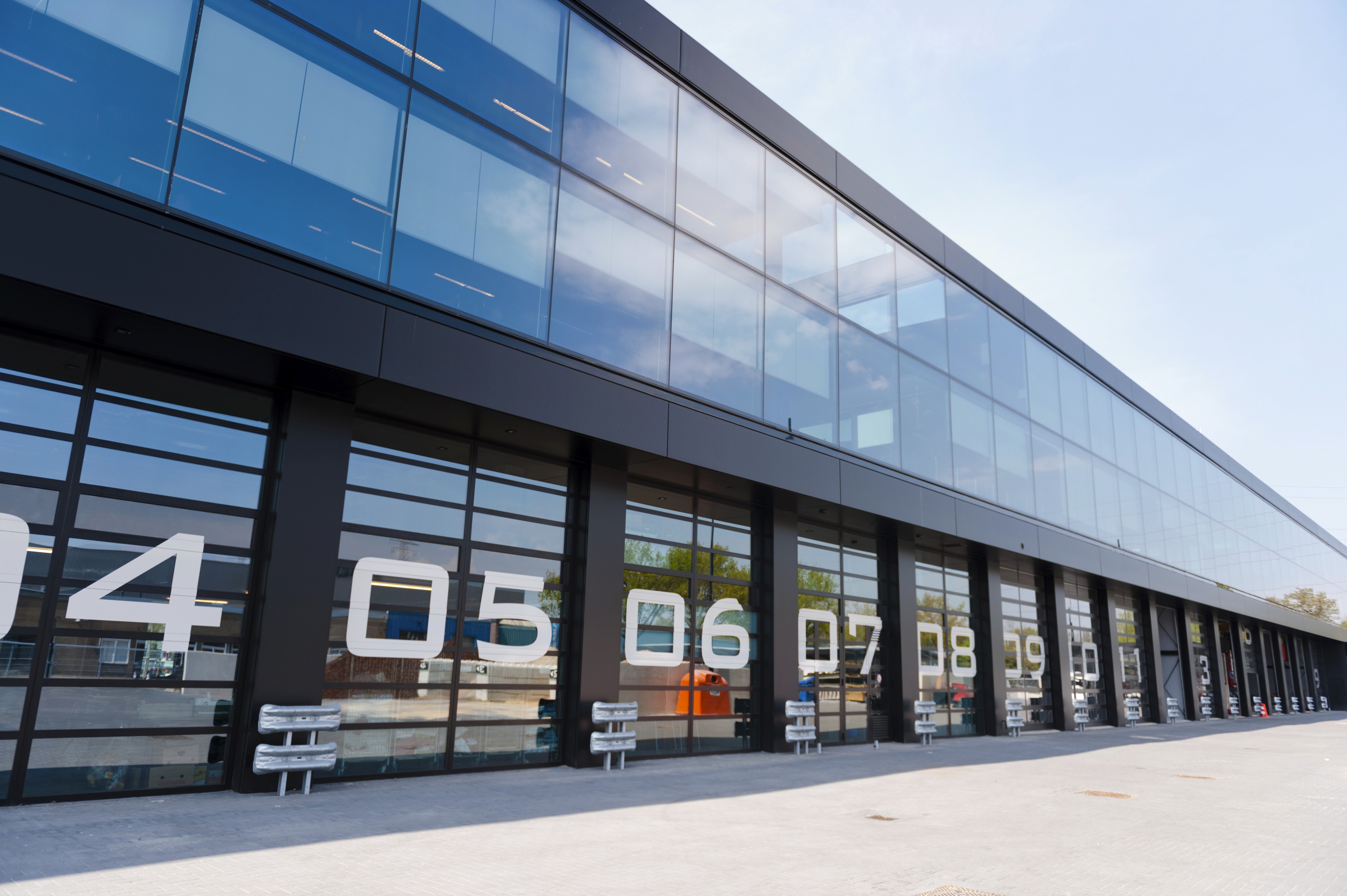

Commercial façades

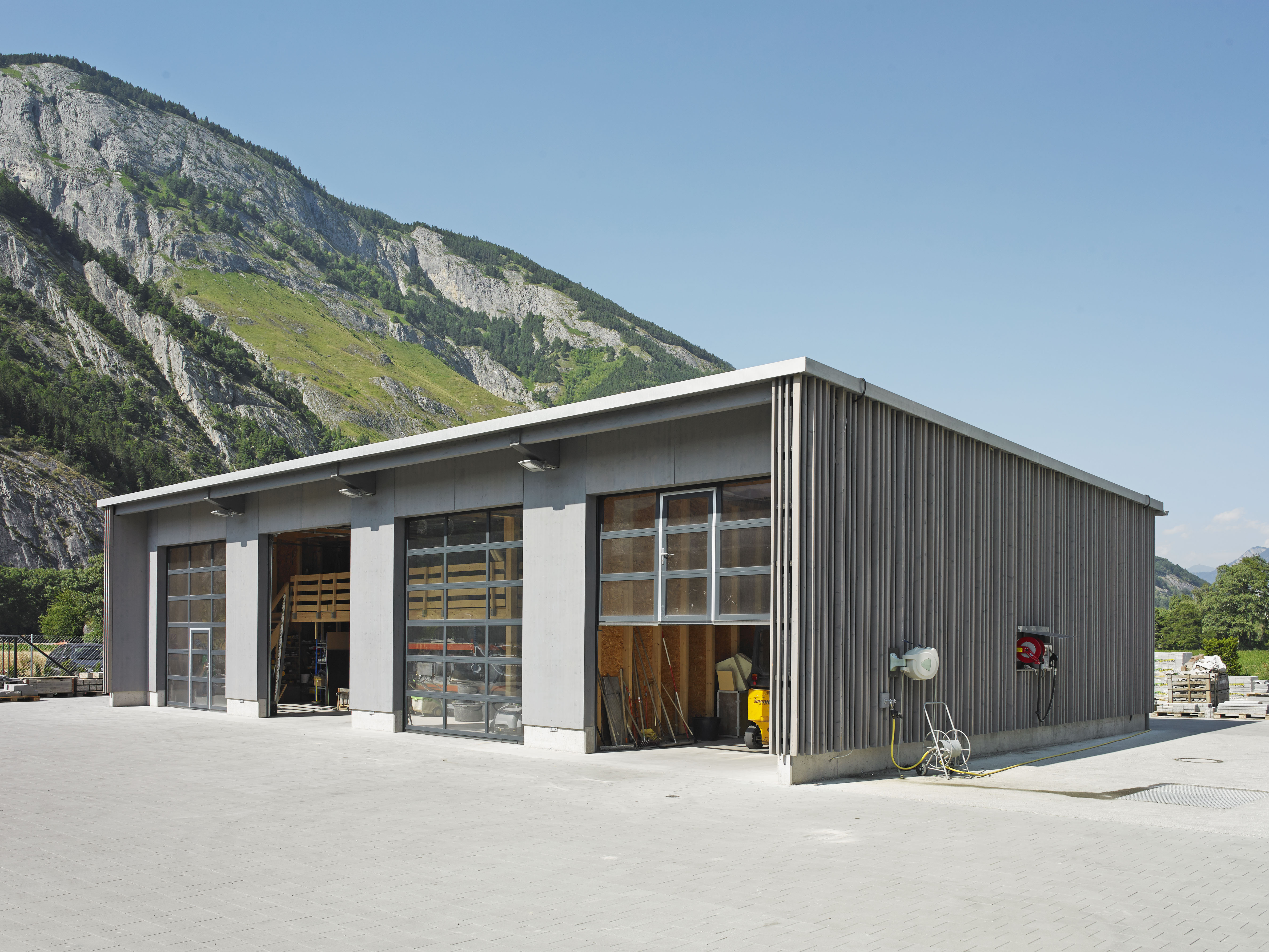

Industrial buildings with high daylight requirements

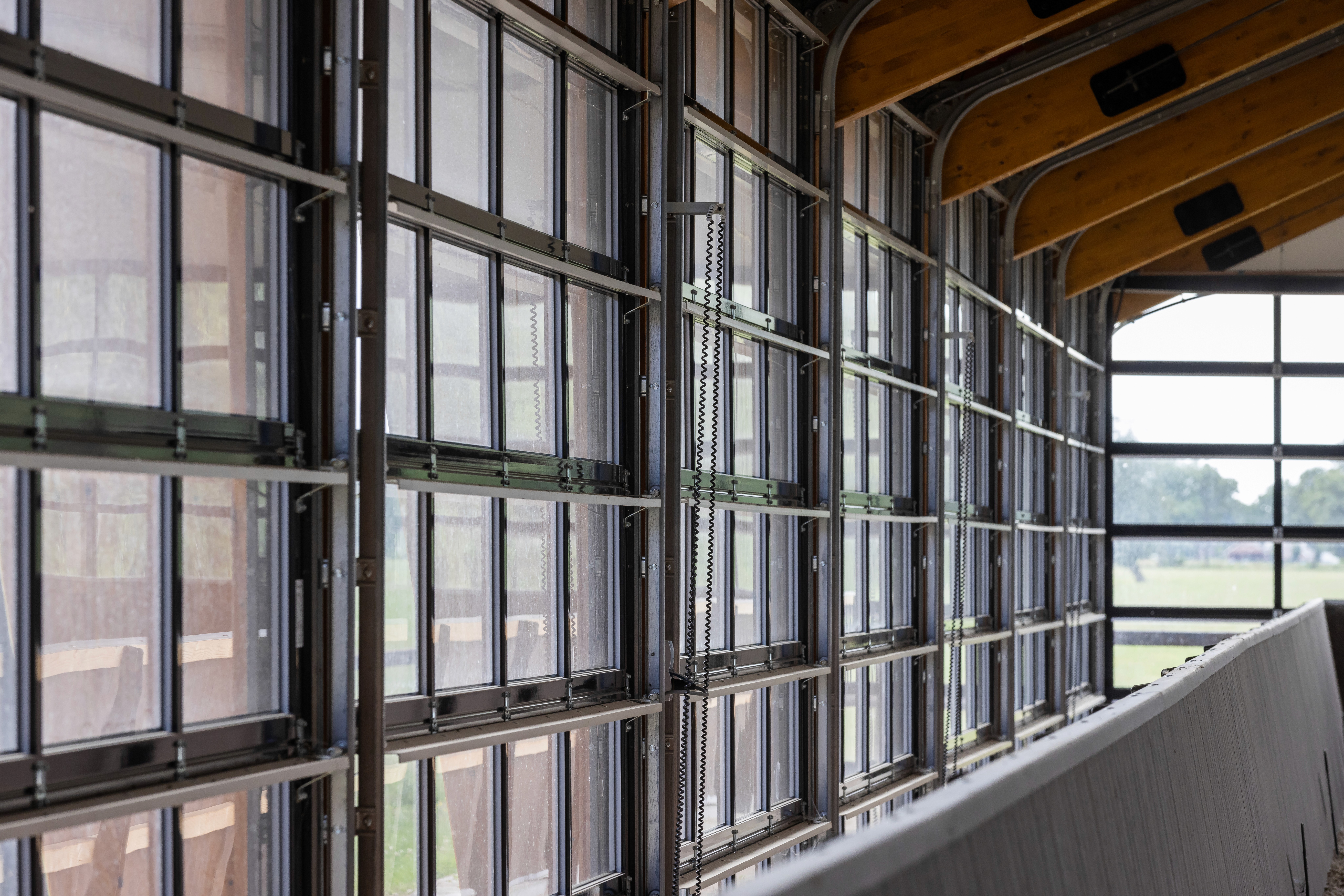

Public buildings with architectural emphasis
Its robust design and high insulation properties make it an excellent choice for facilities requiring energy efficiency, safety, and durability.
Technical Specifications
Technical data | Specification |
|---|---|
Panel Thickness | 40 mm |
Panel structure | Aluminium section with filling |
Frame Material | Anodised aluminium (E6EV1), optionally powder-coated |
Panel filling | ALU expanded metal, perforated aluminium sheet, smooth RAL filling of your choice |
Glass options | Acrylate, PRO-TEC, opal, pinspot, poly, safety glass |
Finger guards | Yes |
Available Panel Heights | Custom – determined per project |
Max. Door Width / Height | Made to measure (project-specific) |
Compatible Drive Systems | Manual, chain hoist, or electric (Pro-Line drive) |
Optional Features
Pass door with standard or low sill
Safety features: spring break safety, cable break device, slack cable detection, safety edge or light curtain
Mixed panel layouts (e.g. glazed top and steel bottom section)
Reinforced bottom profiles for high-contact zones
