Key Features
80 mm thick aluminium sectional panels:
The robust door structure is built using anodised aluminium profiles with a 80 mm depth, ensuring exceptional strength and stability.
Thermal break construction:
A fully thermally separated frame (no thermal bridge) prevents condensation and heat loss, enhancing energy efficiency.
Superior insulation:
A80 ISO reduces heat loss by up to 85% compared to standard 40 mm aluminium doors.
Quadruple glazing:
High-performance glazing units deliver excellent light transmission while minimizing heat transfer.
Powder-coated finish:
The aluminium sections are anodised as standard and powder coated when a colour is selected, ensuring long-term durability and aesthetic value.
Pass door compatibility:
A unique advantage: the A80 ISO can be fitted with a low-threshold pass door — rare in 80 mm systems.
Flexible integration:
Often combined with T80 ISO steel sections for mixed aluminium-steel constructions, such as glass-top with solid insulated base.
Guide Systems (Lifting Options)
Standard lift
High lift
Vertical lift
Low headroom (rear or front mounted spring system)
Inclined tracks and custom configurations available
Applications
The AMTR A80 ISO is is especially suited for:

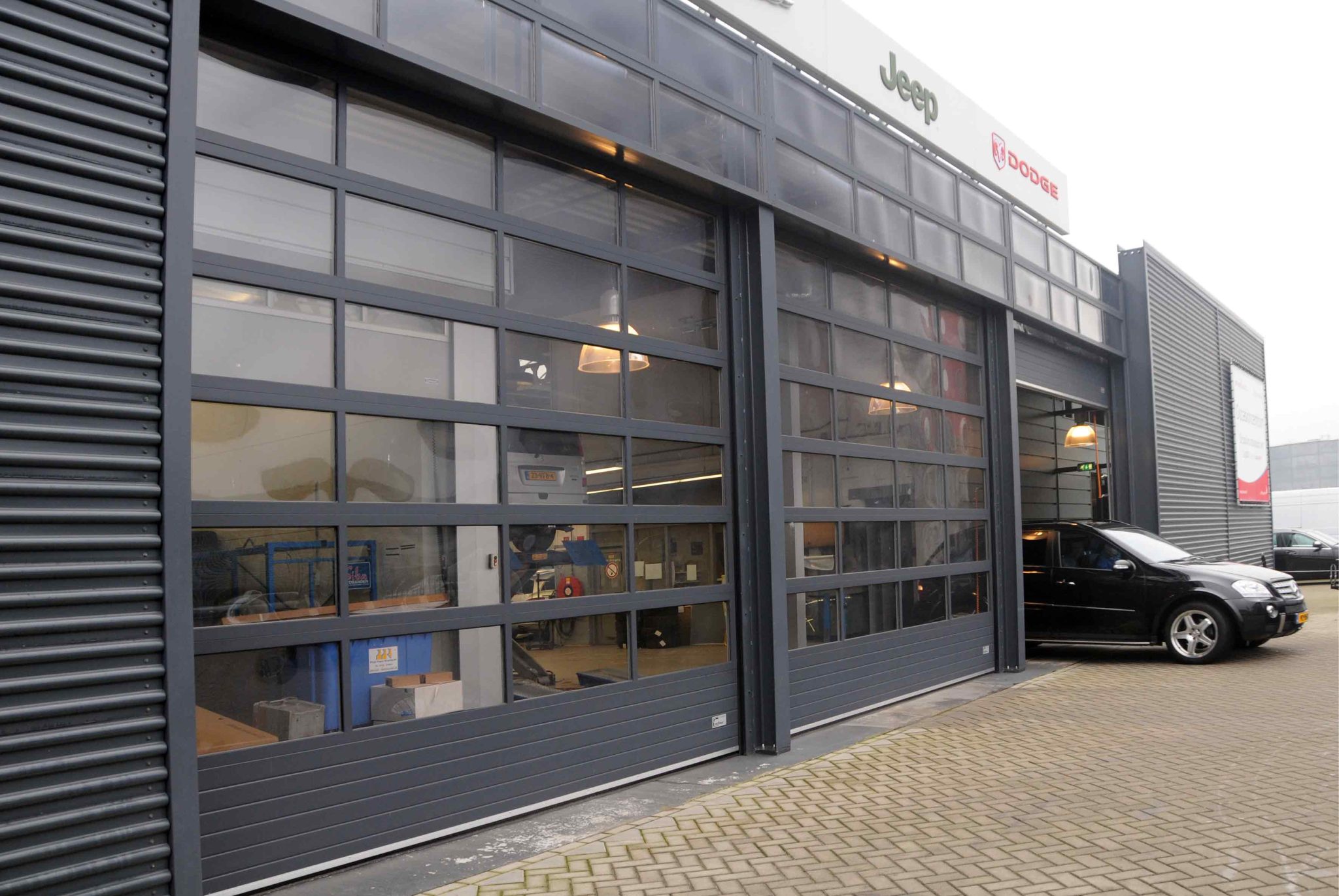

Automotive and retail showrooms

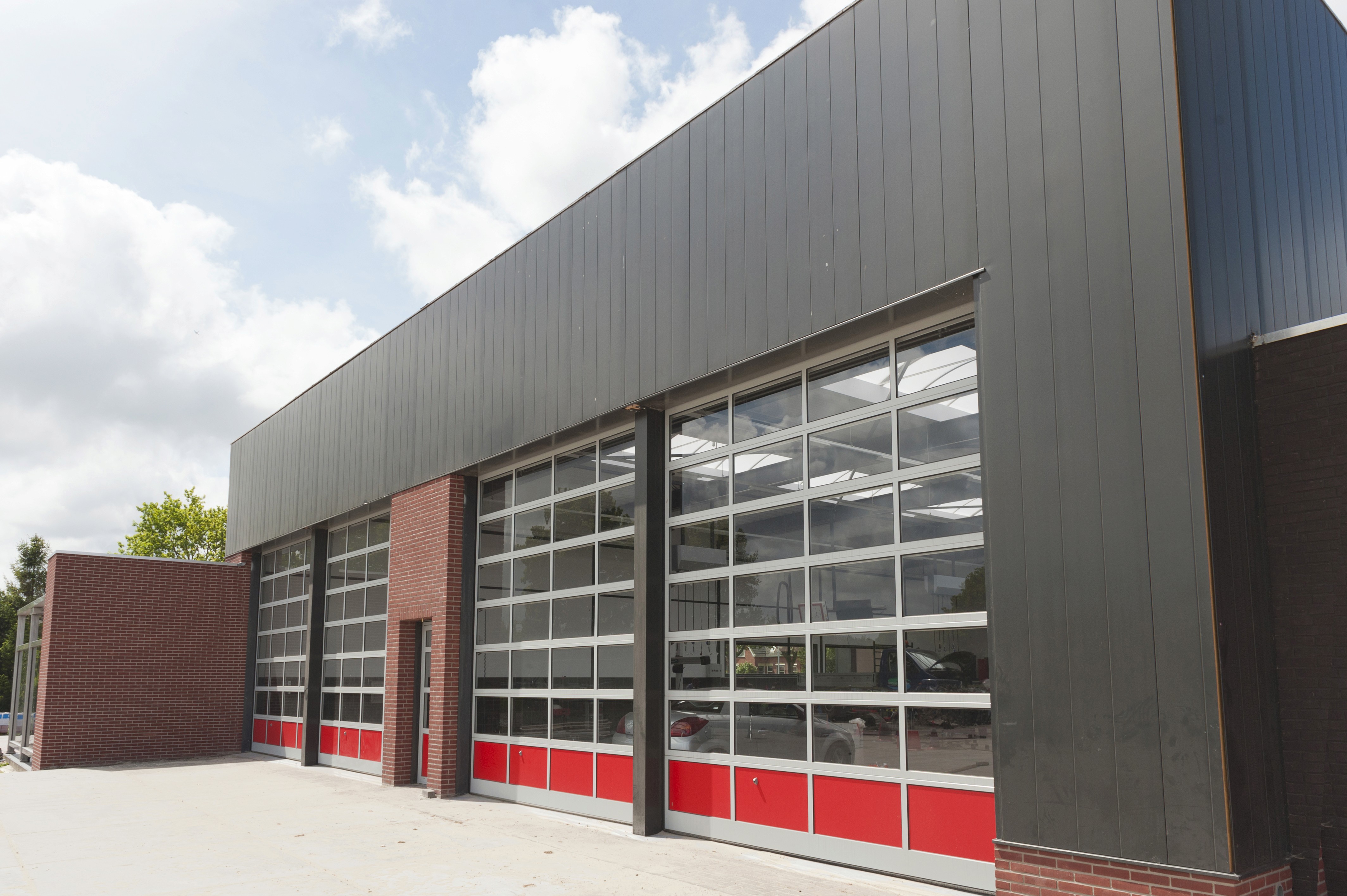

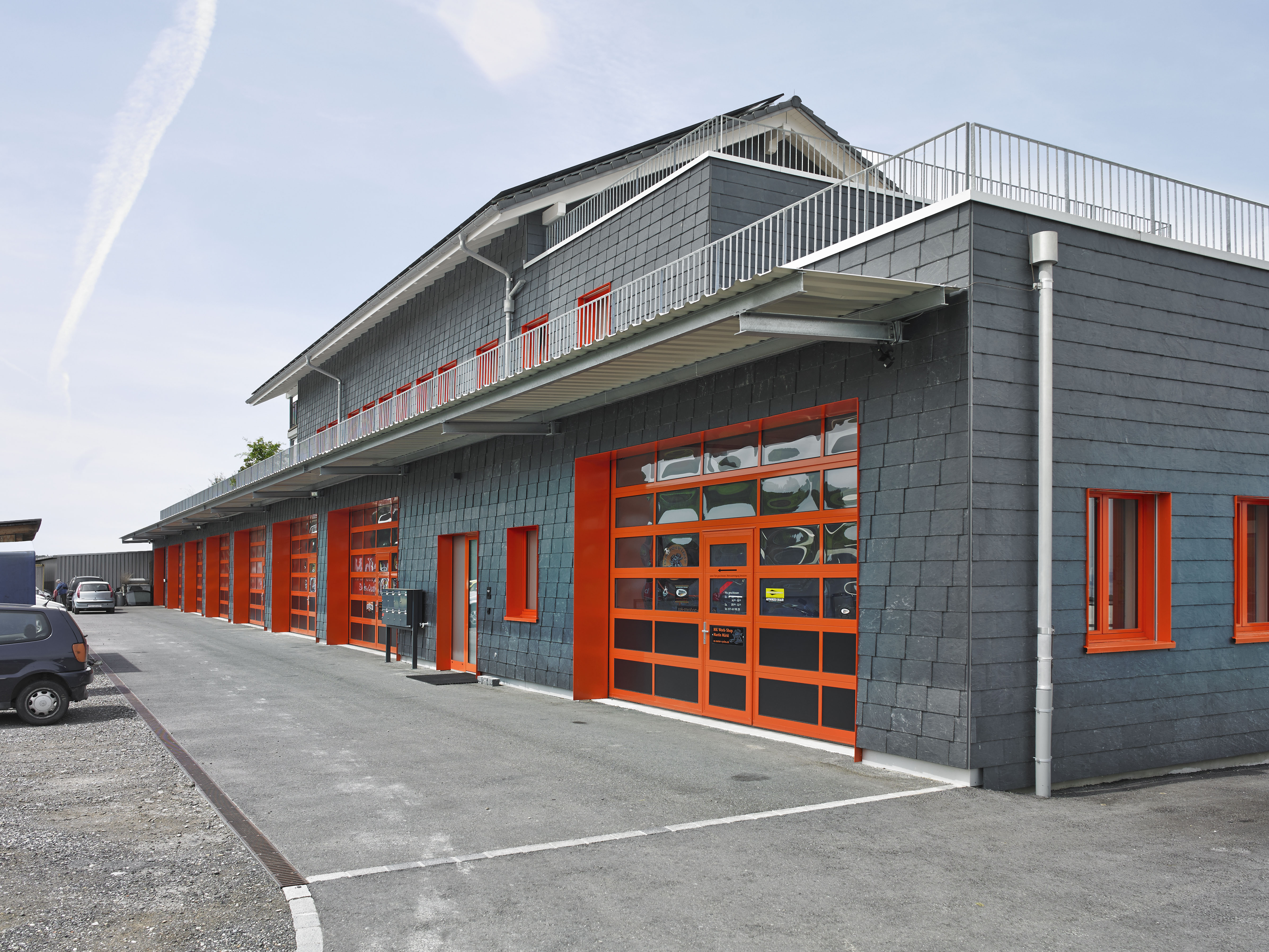

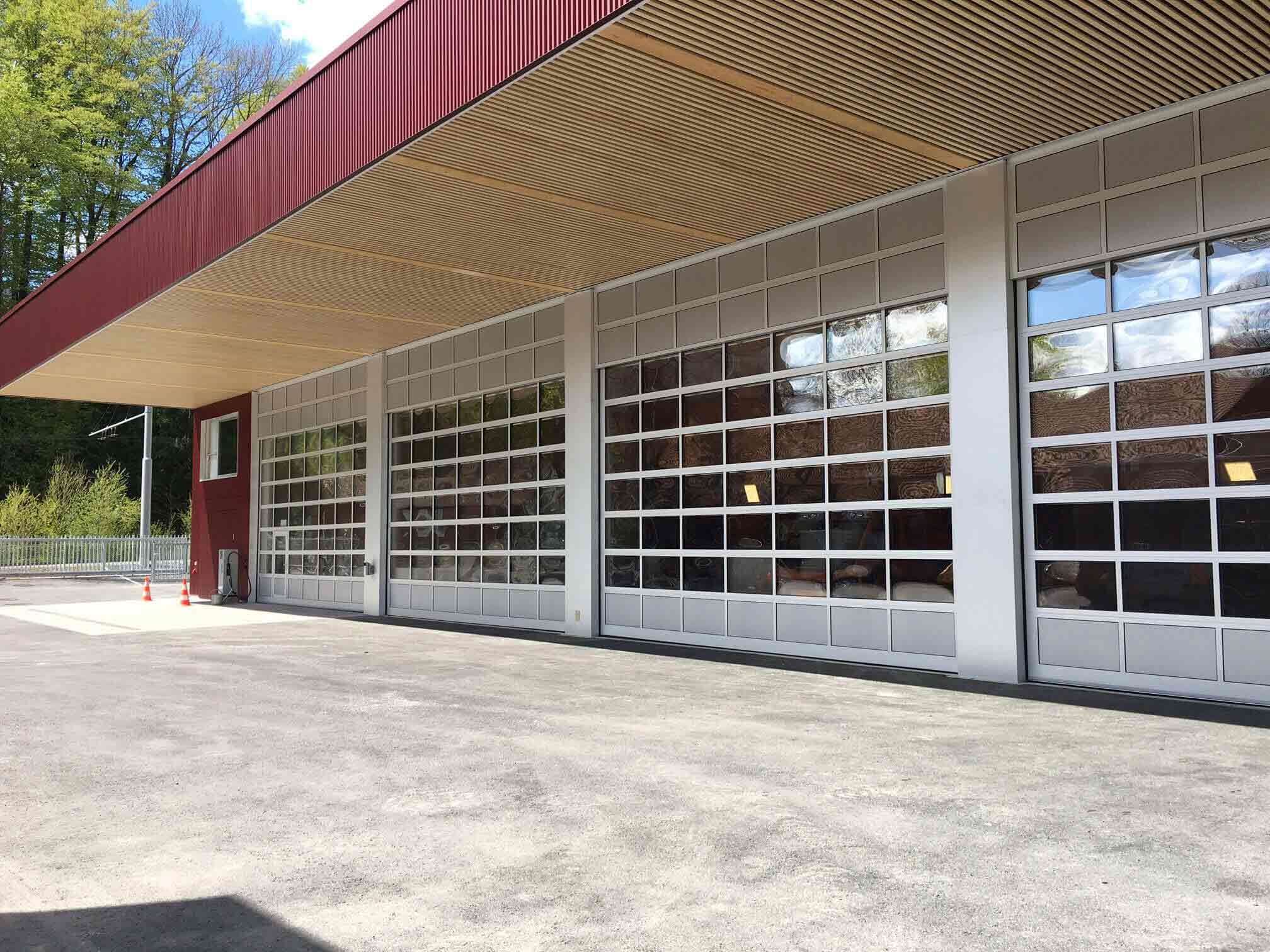

Fire and ambulance stations
Warehouses with climate-controlled zones
Modern commercial façades
Public buildings where energy and light management are critical
Its robust design and high insulation properties make it an excellent choice for facilities requiring energy efficiency, safety, and durability.
Technical Specifications
Technical data | Specification |
|---|---|
Panel Thickness | 80 mm |
Thermal Break | Yes – full separation, no thermal bridge |
Material | Thermally broken anodised aluminium |
Surface finish | Anodised (E6EV1) or powder-coated RAL |
Transparent fillings | Acrylate glazing (quadruple), PRO-TEC glazing (quadruple) |
Solid fillings | Smooth, insulated filling in anodised aluminium or in the RAL colour of your choice |
Optional fillings | T80 ISO steel sandwich sections at additional cost |
Finger guards | No |
Pass door option | Yes – with low threshold |
Compatible Drive Systems | Manual, chain hoist, or electric (Pro-Line drive) |
Compliance | CE-marked, EN 13241 |
Optional Features
Low-threshold pass door
Extended safety options (Slack cable detectors, Cable break and spring break safety devices, Safety edge and/or light curtain for motorised versions)
Mixed section configuration (A80 ISO + T80 ISO)
Special glazing types on request (Smoked, tinted, opal (30% or 80%), acrylic or safety glass with decorative finishes)
