GENERAL INFORMATION

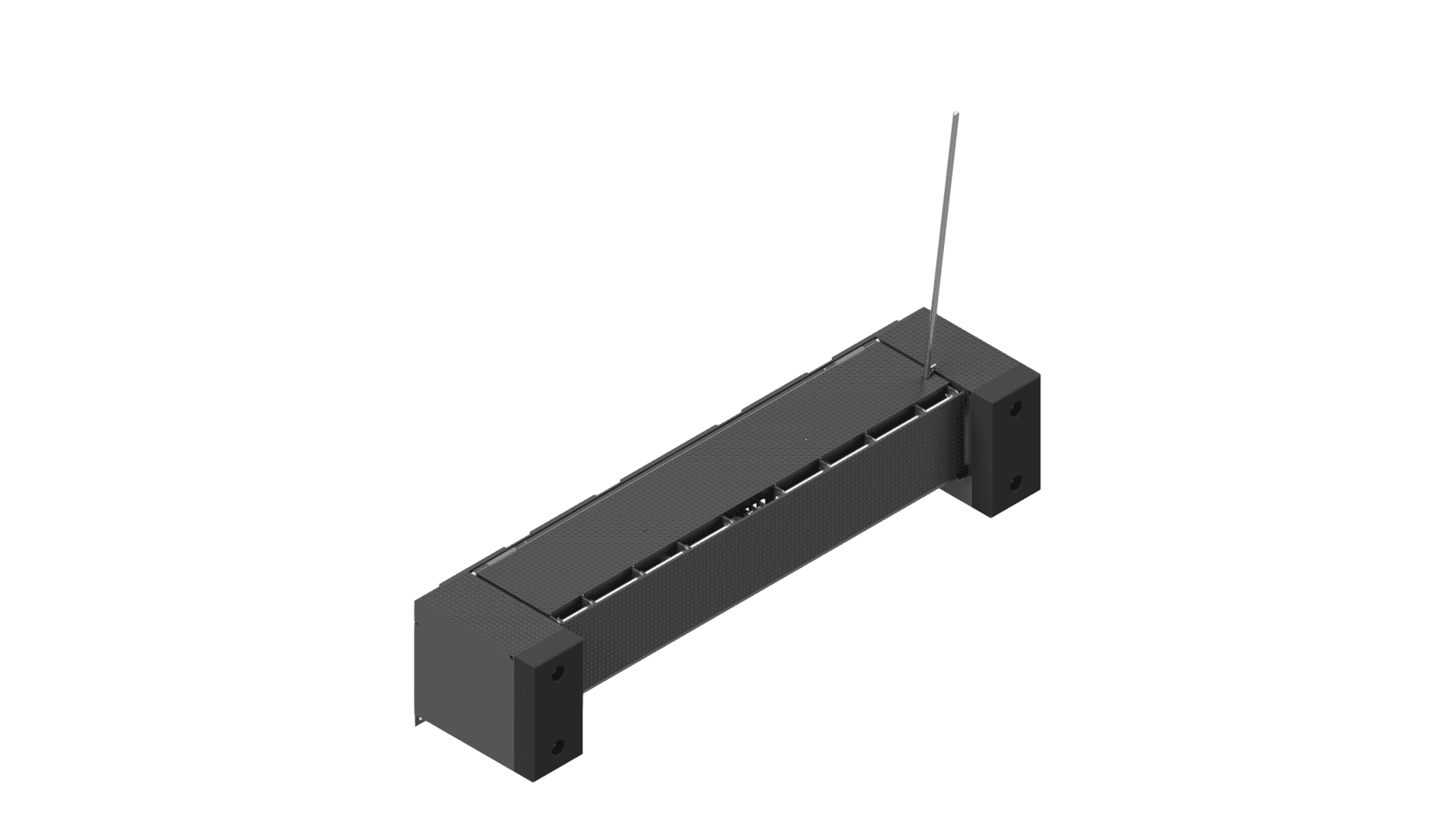

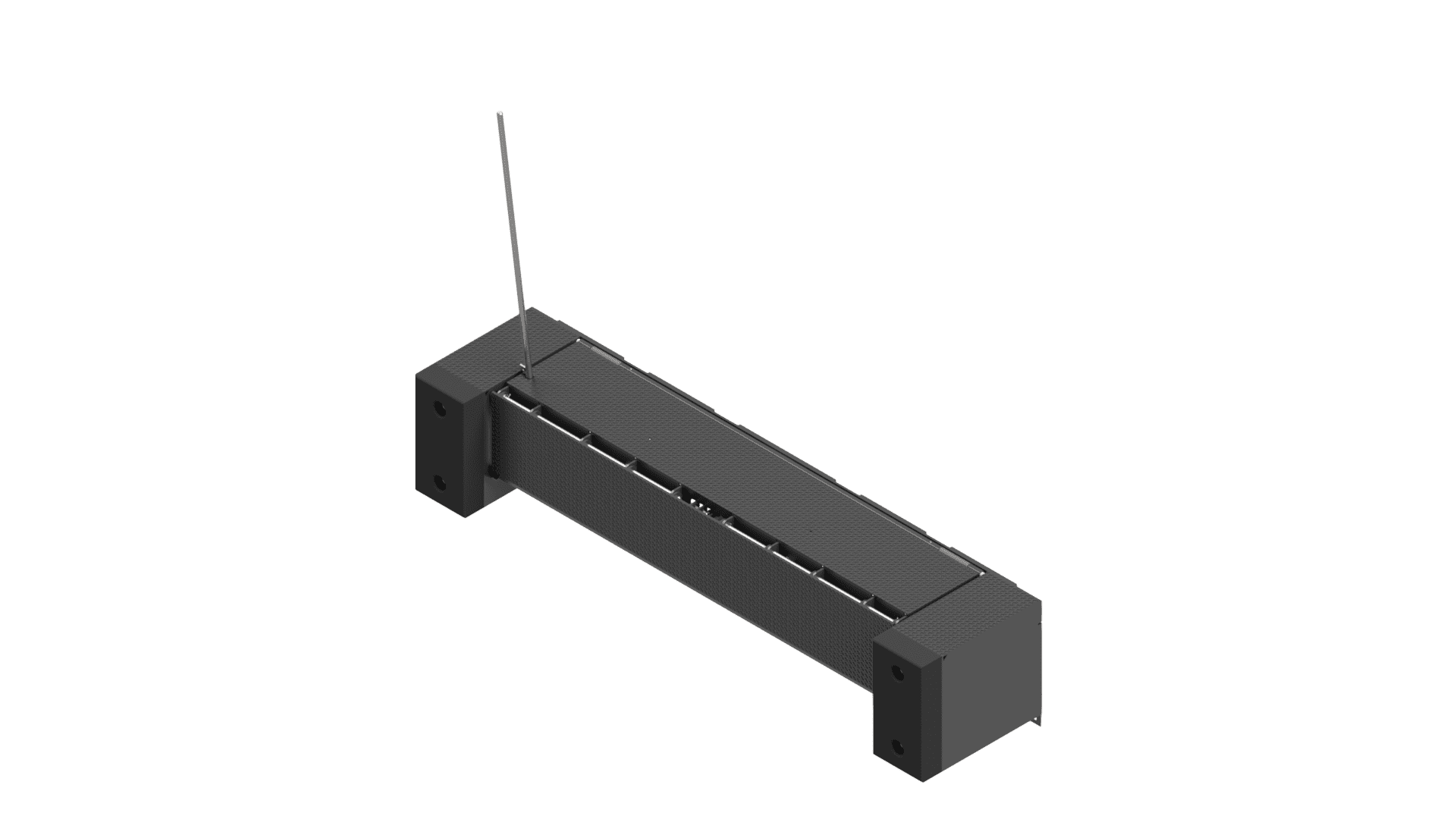

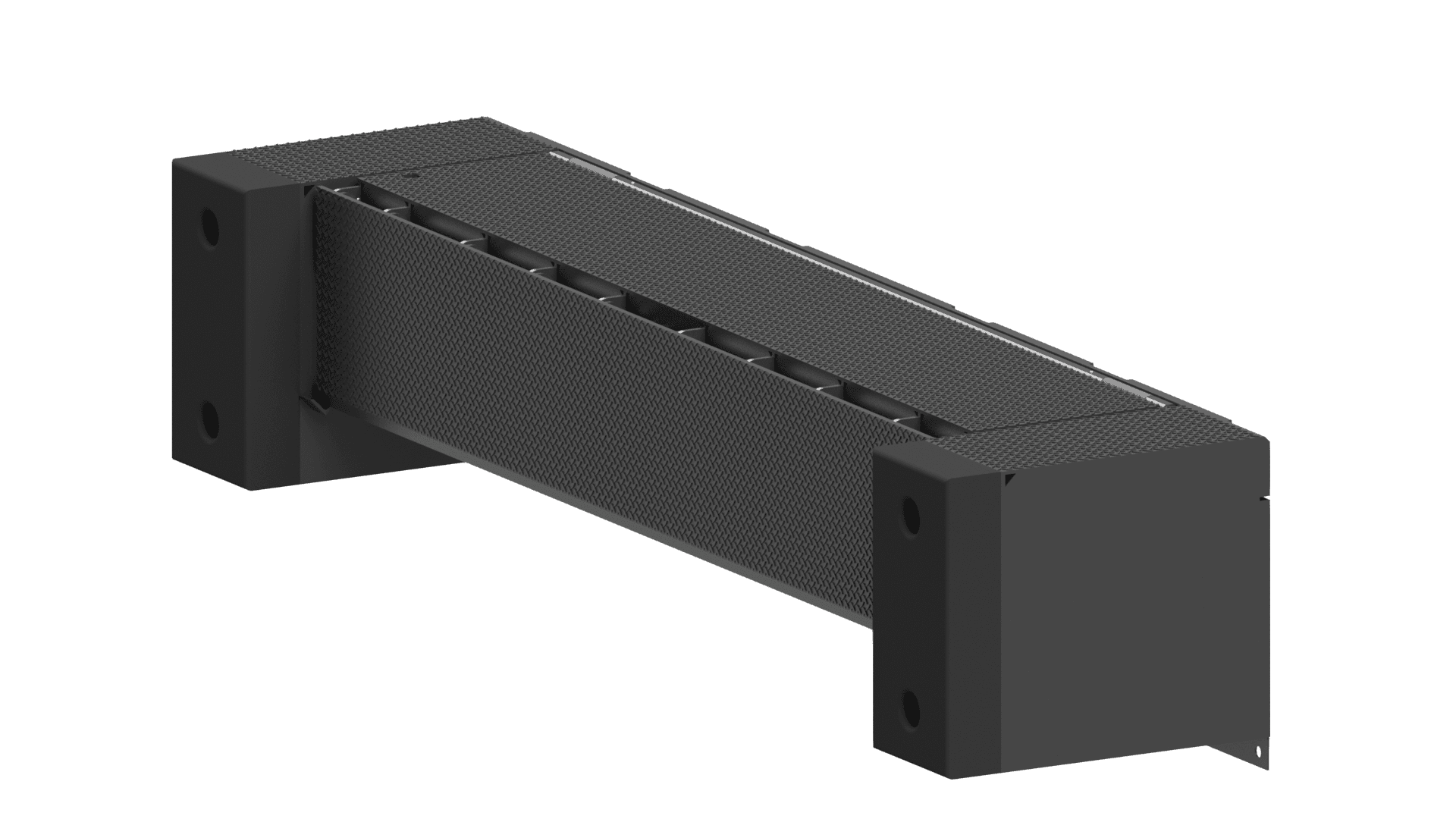

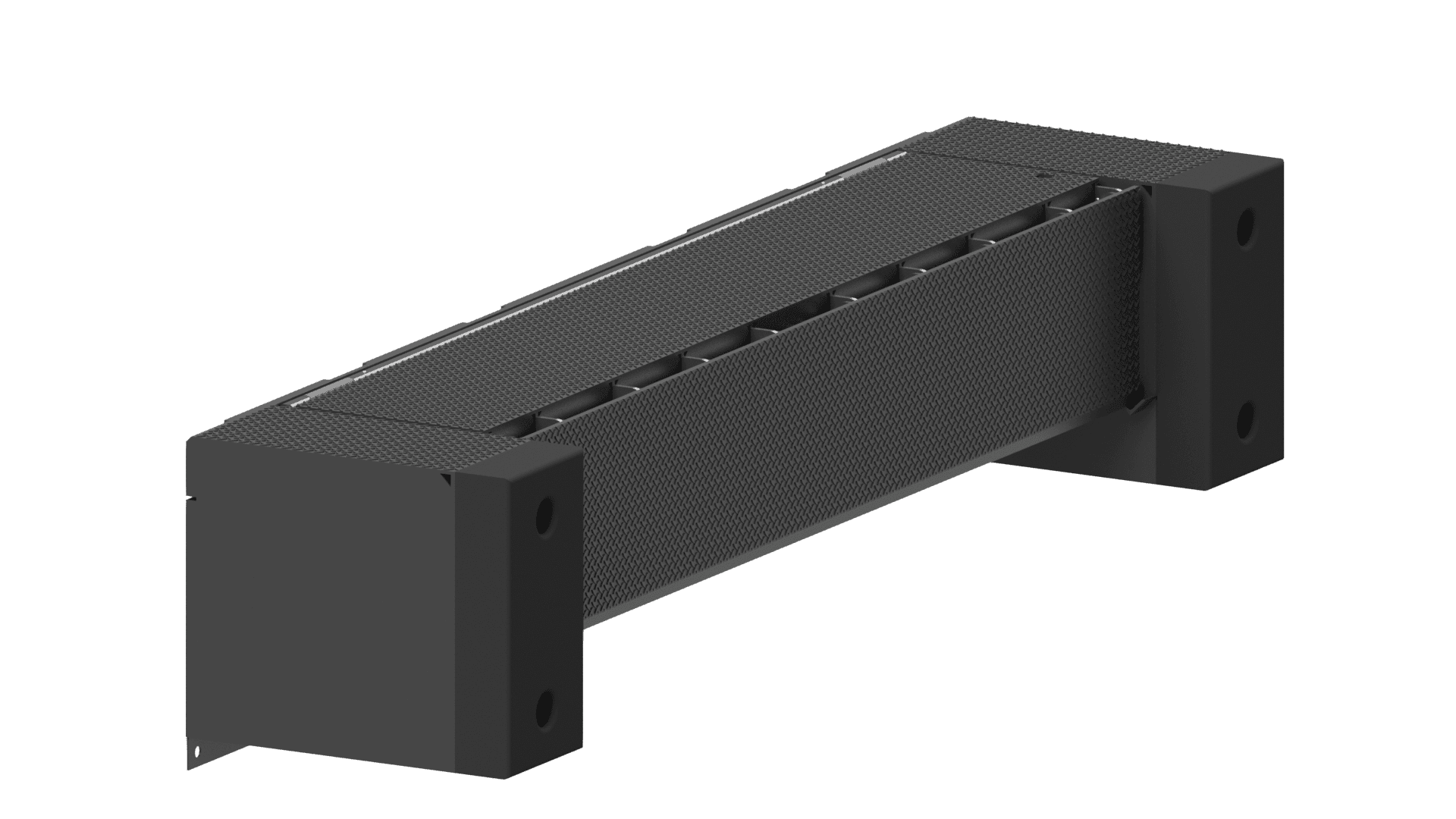

The mechanical dock leveler is designed as an alternative to hydrau lic external ramps for servicing heavy-duty trucks. Thanks to the use of a tilted ramp, there is no need to park the vehicle precisely before starting the loading/unloading process. An additional advantage is the lack of requirement for electrical power supply and minimal interference with the maneuvering area.
Technical data | Specification |
|---|---|
Nominal width | 1750; 2000; 2100; 2200 mm |
Nominal length | 730 mm |
Tilted ramp length | 360 mm |
Nominal load capacity | 60 kN |
Platform top sheet | Anti-slip 6/8 mm (DIN 59220) |
Tilted ramp sheet | 10/12 mm (DIN 59220) |
Operating range | -110 mm to +110 mm |
