Key Features

Panel Construction:

The S40 door comprises 40 mm thick, double-walled steel sandwich panels. These panels feature a fire-retardant polyurethane foam core, providing excellent thermal insulation and structural integrity.

Safety:

Equipped with finger-safe protection, the S40 ensures enhanced safety during operation, reducing the risk of injuries.

Surface Finish:

Both the interior and exterior surfaces have a stucco finish with horizontal lines. The inner face is standard in RAL 9002, while the outer face can be customized in any RAL colour to match building aesthetics.

Colour Options:

Available in 18 standard RAL colours, including 1021, 3000, 5010, 6009, 7016, 8014, 9002, 9006, 9007, 9010, 1015, 5003, 6005, 7021, 7022, 7035, 9001, and 9005.

Customization:

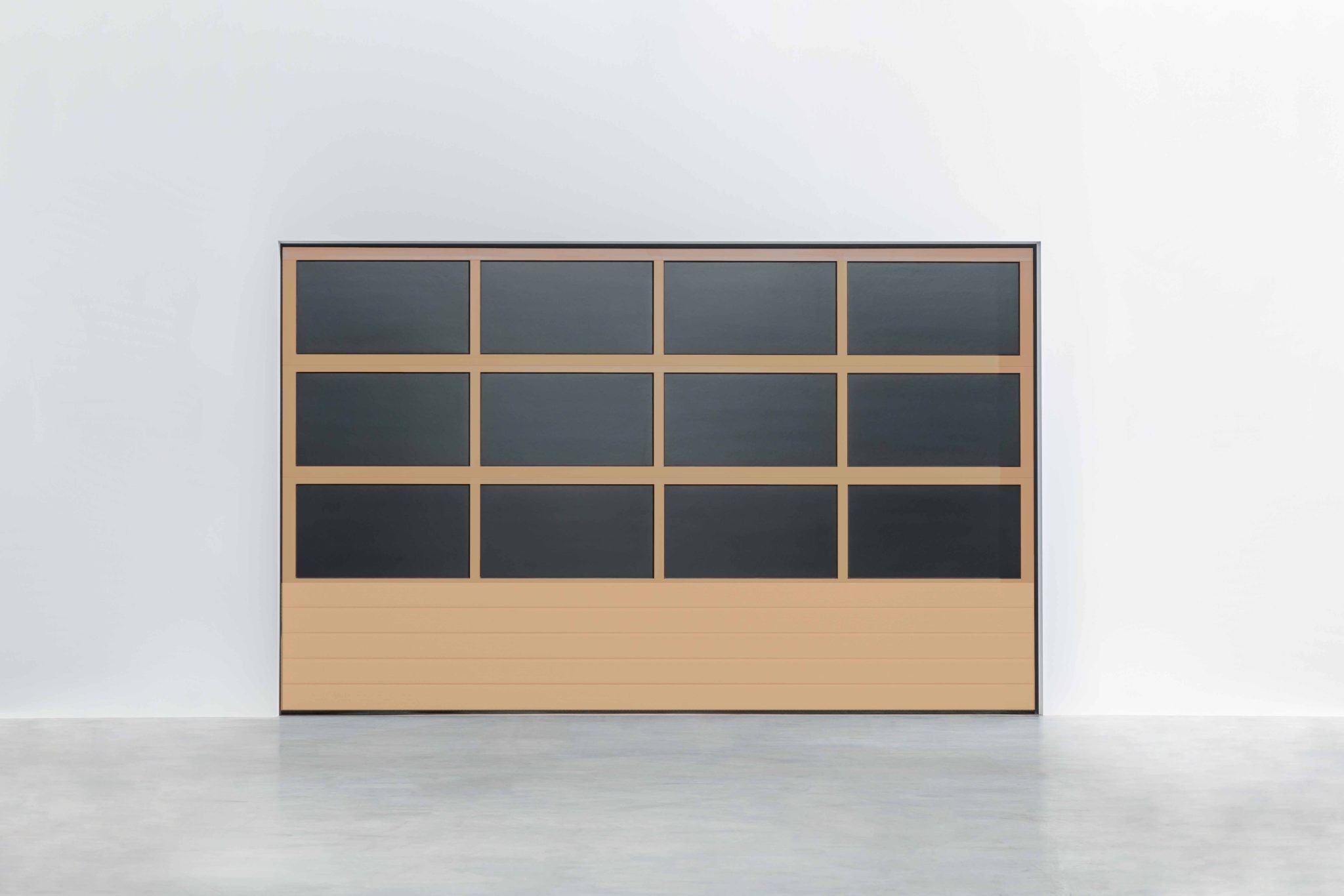

The S40 can be tailored to specific requirements, with options for glazing, pass doors, and various operating mechanisms, including manual, semi-automatic, or fully automatic systems.

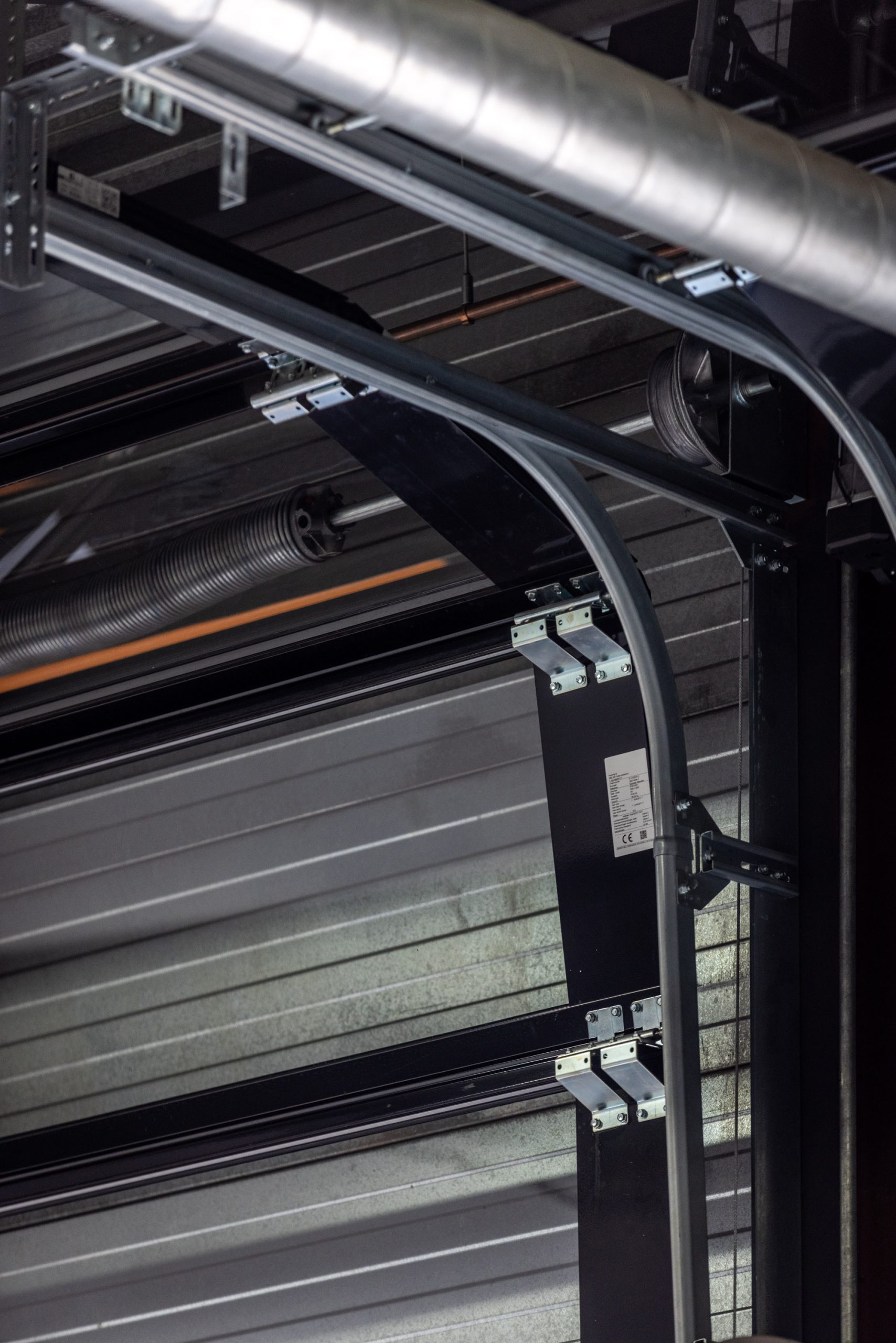

Guide Systems (Lifting Options)

• Standard lift

• High lift

• Vertical lift

• Low headroom (rear or front mounted spring system)

• Inclined tracks and custom configurations available

All track systems are engineered for smooth and quiet operation, with long-life torsion springs and optional corrosion-resistant components.

Applications

The AMTR S40 is ideally suited for a wide range of industrial applications, including:

• Warehouses

• Logistics centers

• Production facilities

• Agricultural buildings

Its robust design and high insulation properties make it an excellent choice for facilities requiring energy efficiency, safety, and durability.

Technical Specifications
