Key Features

Advanced Insulated Panel Design:

40 mm thick, double-walled steel panels with integrated thermal break, filled with CFC-free, fire-retardant polyurethane foam for superior thermal performance.

Improved Energy Efficiency:

The thermal break significantly reduces heat transfer between the inner and outer steel skins, resulting in better climate control and potential energy savings in temperature-sensitive environments.

Surface Finish:

Stucco-textured panels with horizontal lining.

• Interior: Standard in RAL 9002

• Exterior: Available in 10 standard RAL colours, including RAL 9016, 9006, 9007, 9005, 6007, 5010, 3000, and others.

Customization Options:

• Vision panels or glazed sections

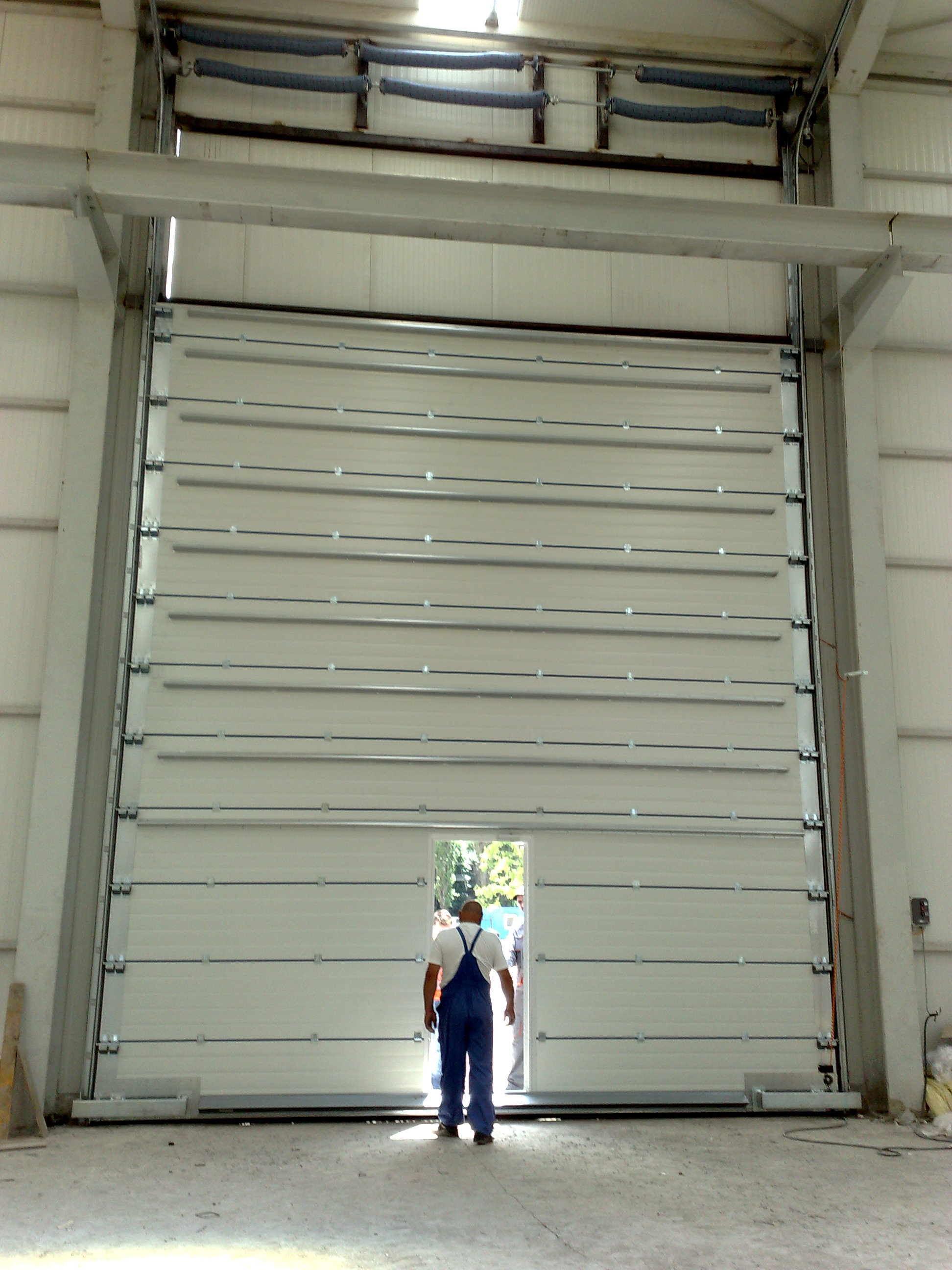

• Integrated pass doors

• Manual or electric operation

• Multiple lifting configurations

Durability:

Constructed with 0.5 mm galvanized steel sheets on both sides, ensuring resistance to wear, weather, and impact.

Aesthetic flexibility – panel surface finish options:

The T40 panels are available in two distinct surface finishes to match the architectural character of the building:

• Stucco with horizontal ribs (standard) – A textured, embossed finish with classic horizontal lines that provides a durable, scratch-resistant surface and industrial look.

• Microline 16 mm (optional) – A sleek and modern linear design with fine 16 mm micro-profiling that enhances visual appeal, especially for contemporary façades.

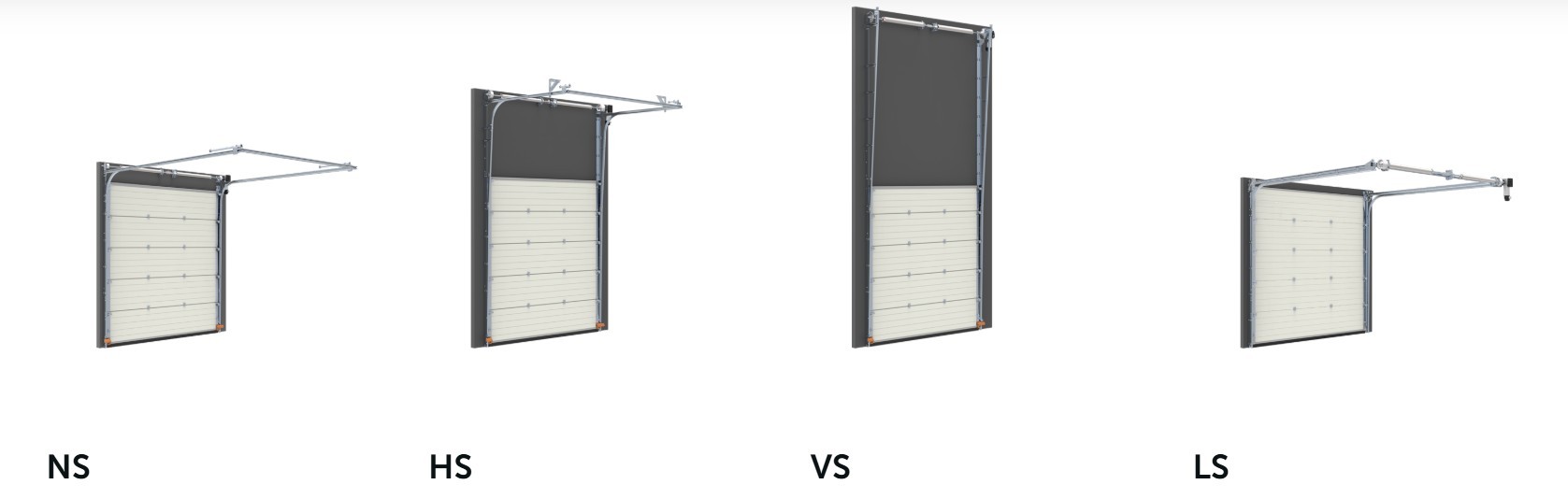

Guide Systems (Lifting Options)

• Standard lift

• High lift

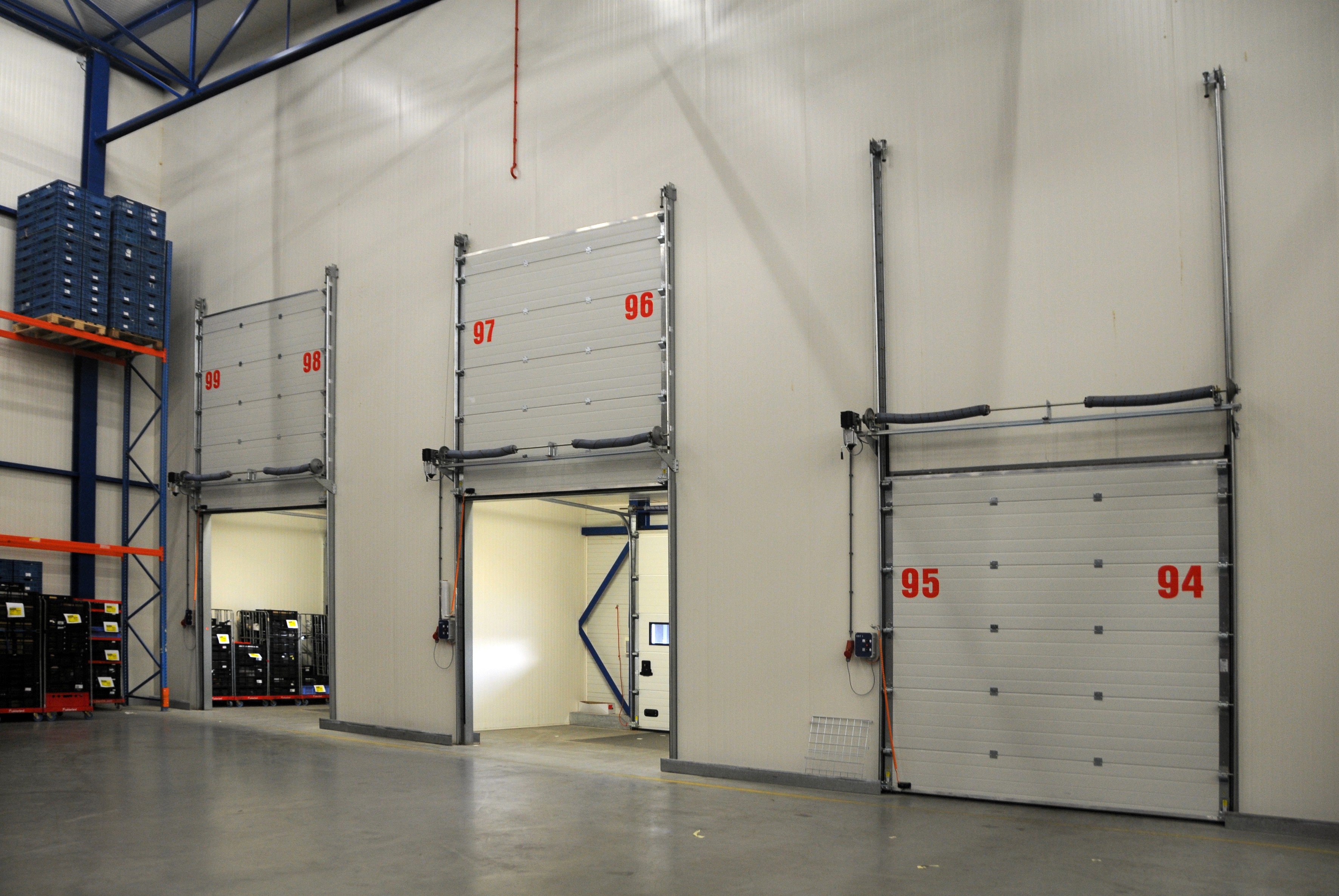

• Vertical lift

• Low headroom (rear or front mounted spring system)

• Inclined tracks and custom configurations available




All track systems are engineered for smooth and quiet operation, with long-life torsion springs and optional corrosion-resistant components.

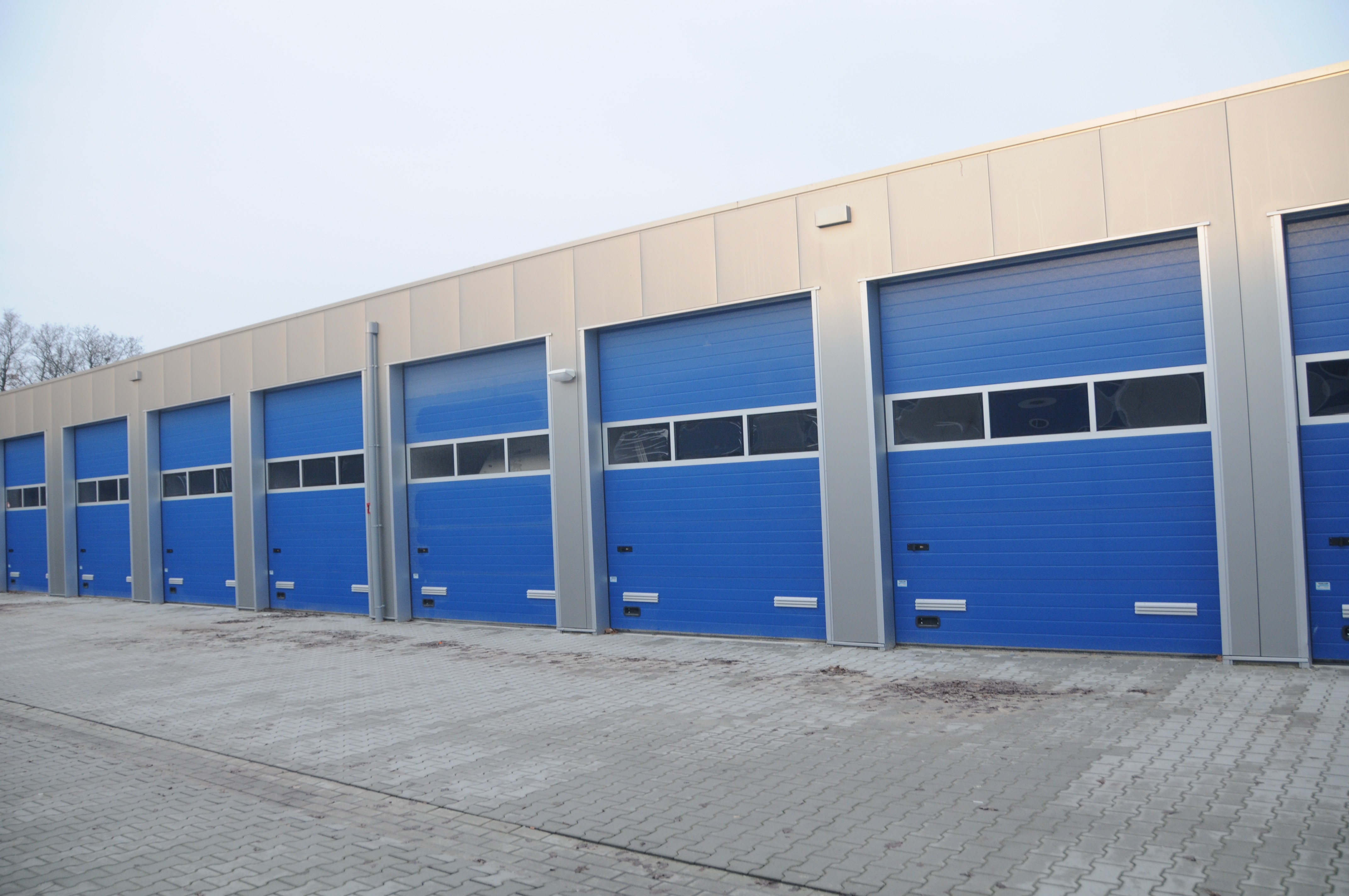

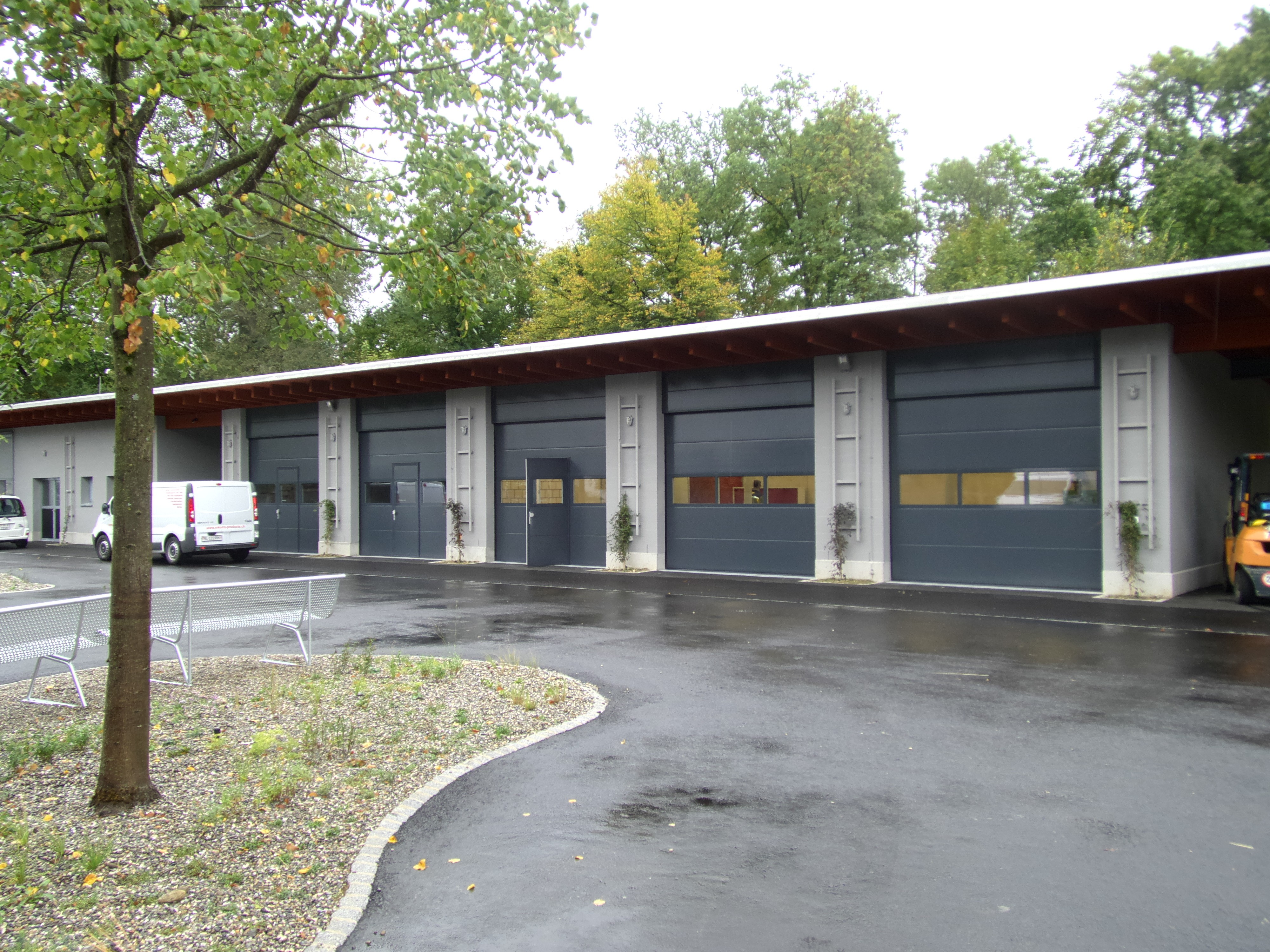

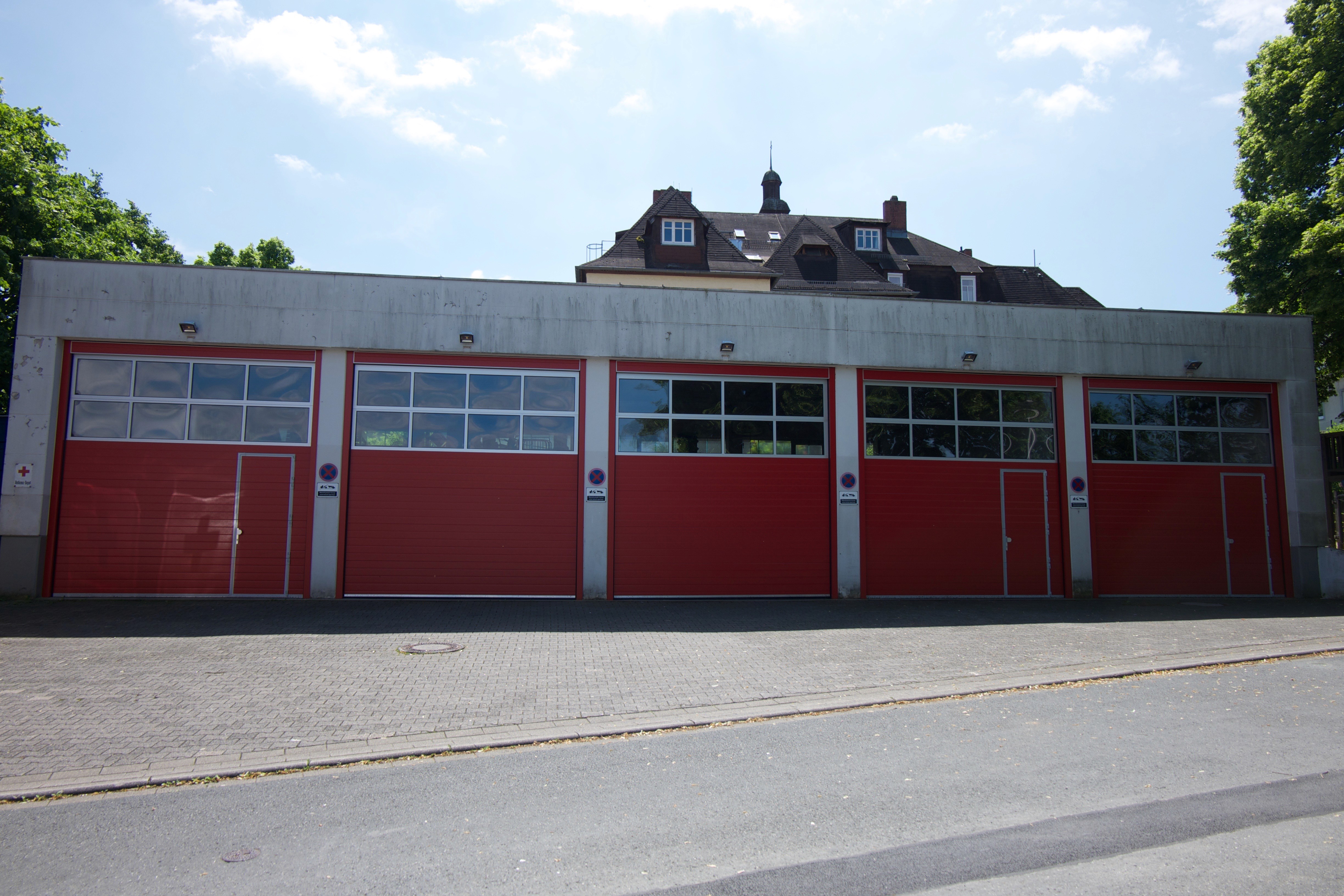

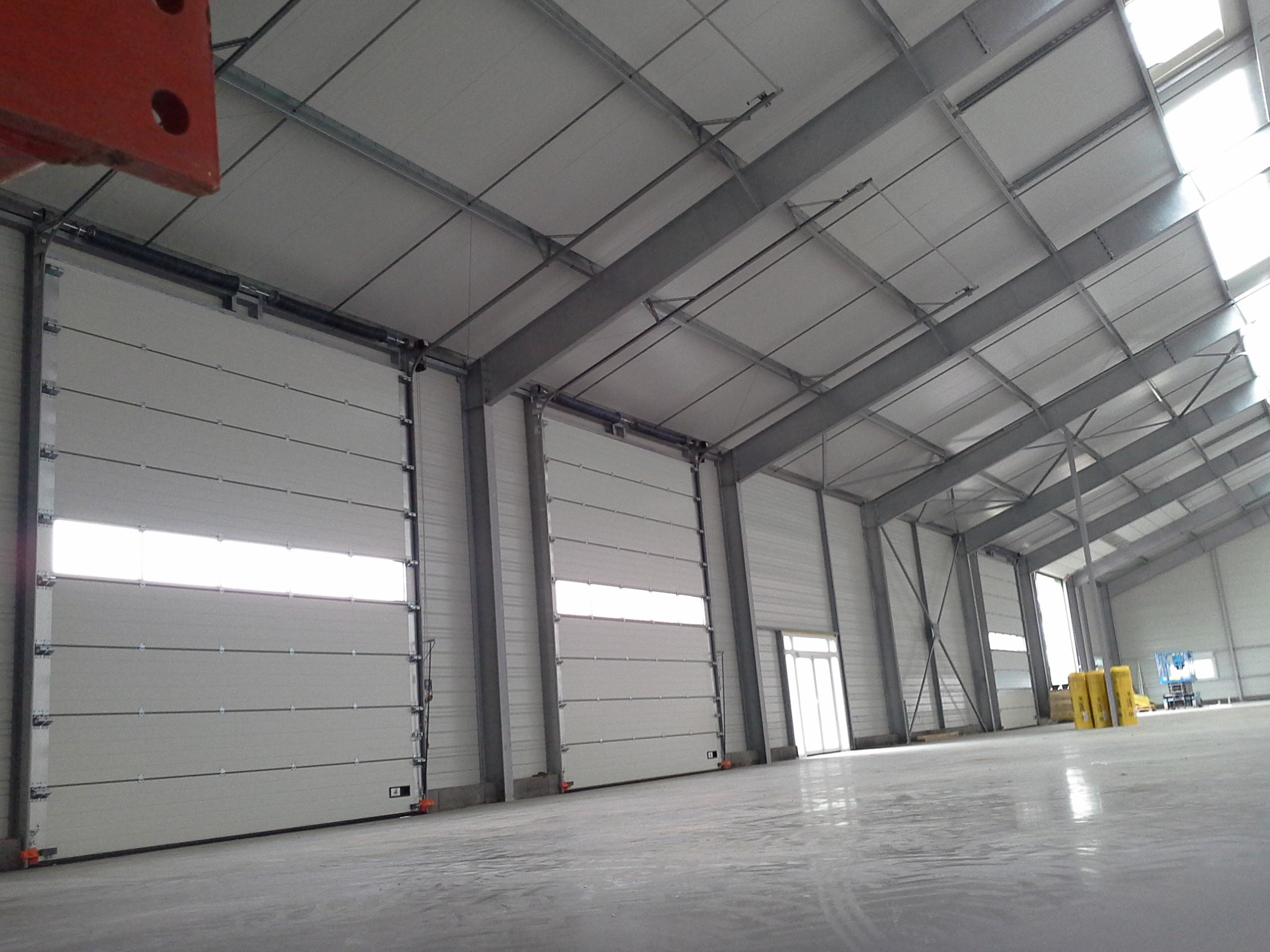

Applications

The AMTR T40 is ideally suited for a wide range of industrial applications, including:

• Warehouses and logistics centers

• Production and assembly halls

• Agricultural and storage buildings

• Workshops and service bays

Its improved thermal barrier makes it especially effective in environments where maintaining interior temperatures is critical — from food storage to heated production areas.

Technical Specifications
