Key Features
80 mm insulated steel panels:
Double-walled steel sandwich panels with CFC-free polyurethane core and full thermal break.

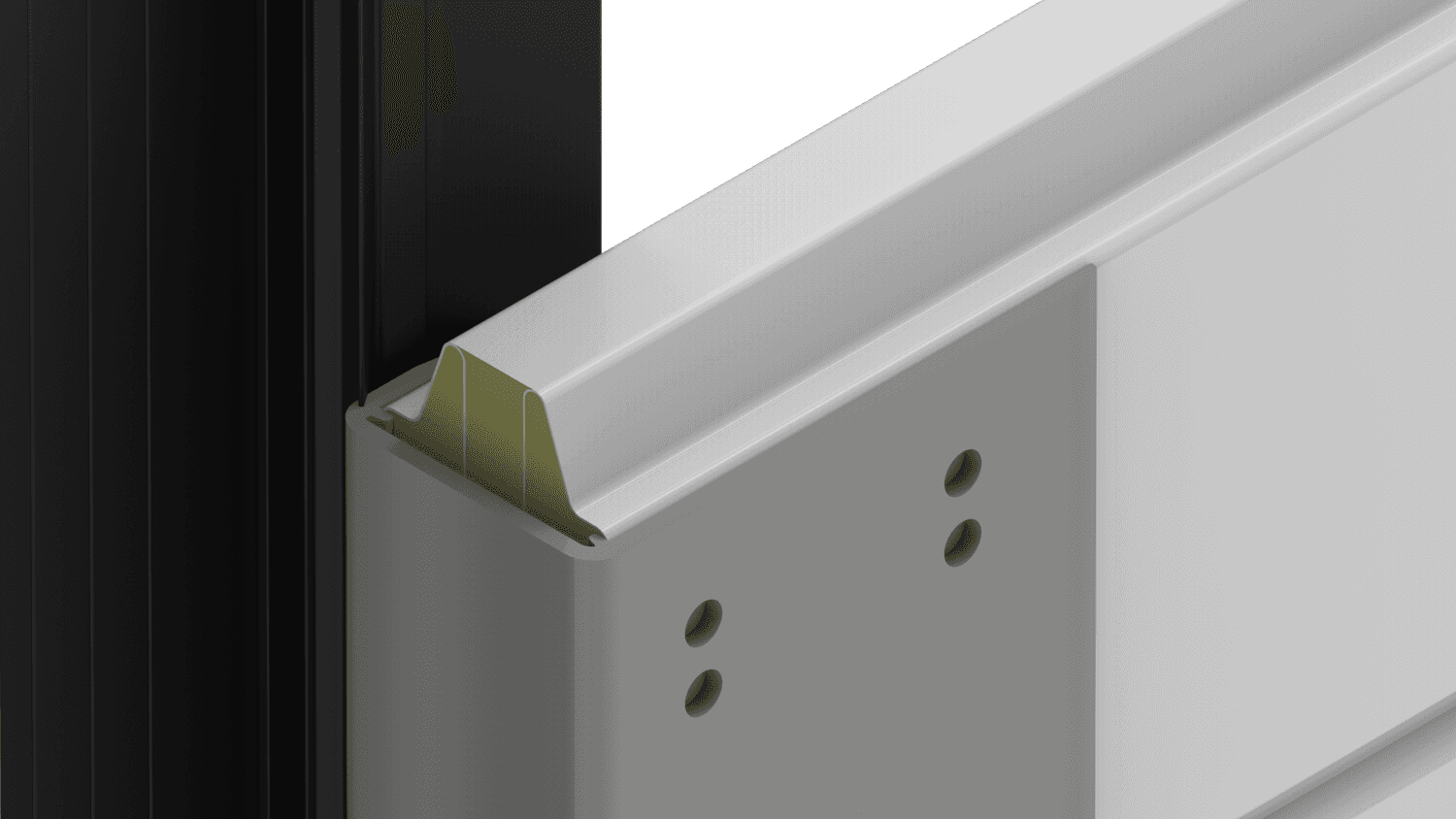

Thermal break construction:
The panels are completely thermally separated, eliminating cold bridging and minimizing heat loss.
Substantially better insulation than S40:
U-value of T80 ISO reaches approx. 0.73–0.81 W/m²·K, compared to 1.33–1.59 W/m²·K for S40 — improving energy retention by up to 45% depending on configuration
All S40 options retained:
The T80 ISO supports the same accessories and configurations as the 40 mm S40 model, including windows, motorisation, custom lift types, and even integrated pass doors.
RAL colour flexibility:
Standard colours: RAL 9002, RAL 9006, RAL 7016 — or any other RAL colour on request.
Aesthetic flexibility – panel surface finish options:
The T80 ISO panels are available in two distinct surface finishes to match the architectural character of the building:

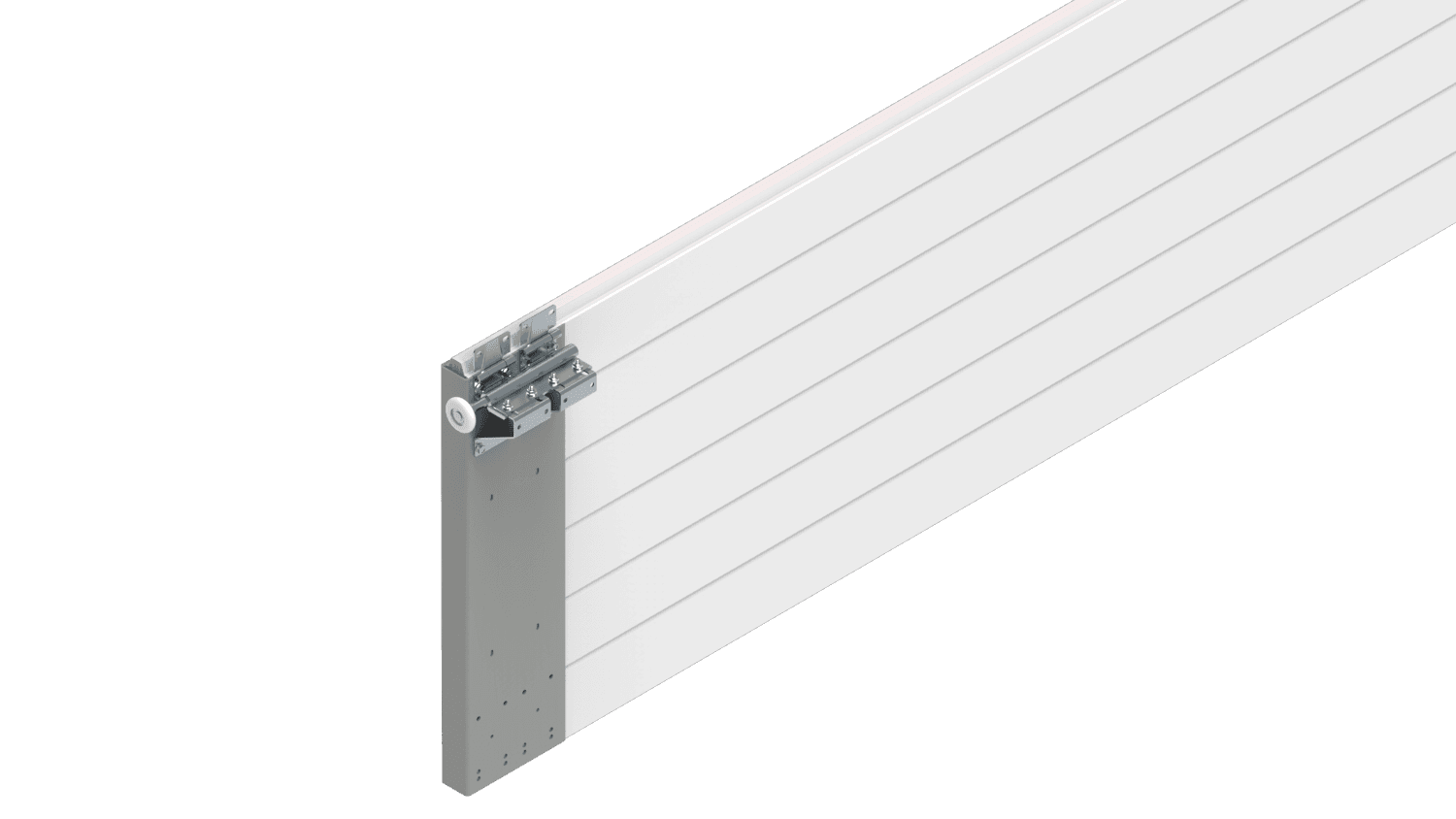

Stucco with horizontal ribs (standard) – A textured, embossed finish with classic horizontal lines that provides a durable, scratch-resistant surface and industrial look.
Microline 16 mm (optional) – A sleek and modern linear design with fine 16 mm micro-profiling that enhances visual appeal, especially for contemporary façades.
Guide Systems (Lifting Options)
Standard lift
High lift
Vertical lift
Low headroom (rear or front mounted spring system)
Inclined tracks and custom configurations available
Applications
The AMTR T80 ISO is is especially suited for:
Warehouses with controlled indoor climates
Manufacturing plants and logistics hubs
Agricultural and food-grade facilities
Distribution centers seeking energy savings
Cold storage areas and industrial halls with thickly insulated walls/roofs
Its robust design and high insulation properties make it an excellent choice for facilities requiring energy efficiency, safety, and durability.
Technical Specifications
Technical data | Specification |
|---|---|
Panel Thickness | 80 mm |
Thermal break | Yes - no thermal bridge |
Material | Thermally broken steel sandwich panels |
Surface finish | Embossed outer skin, RAL 9002 inner skin |
Panel insulation | CFC-free polyurethane core |
Finger guards | Not included (not required by CE for 80 mm) |
Standard colours | RAL 9002, 9006, 7016 (custom on request) |

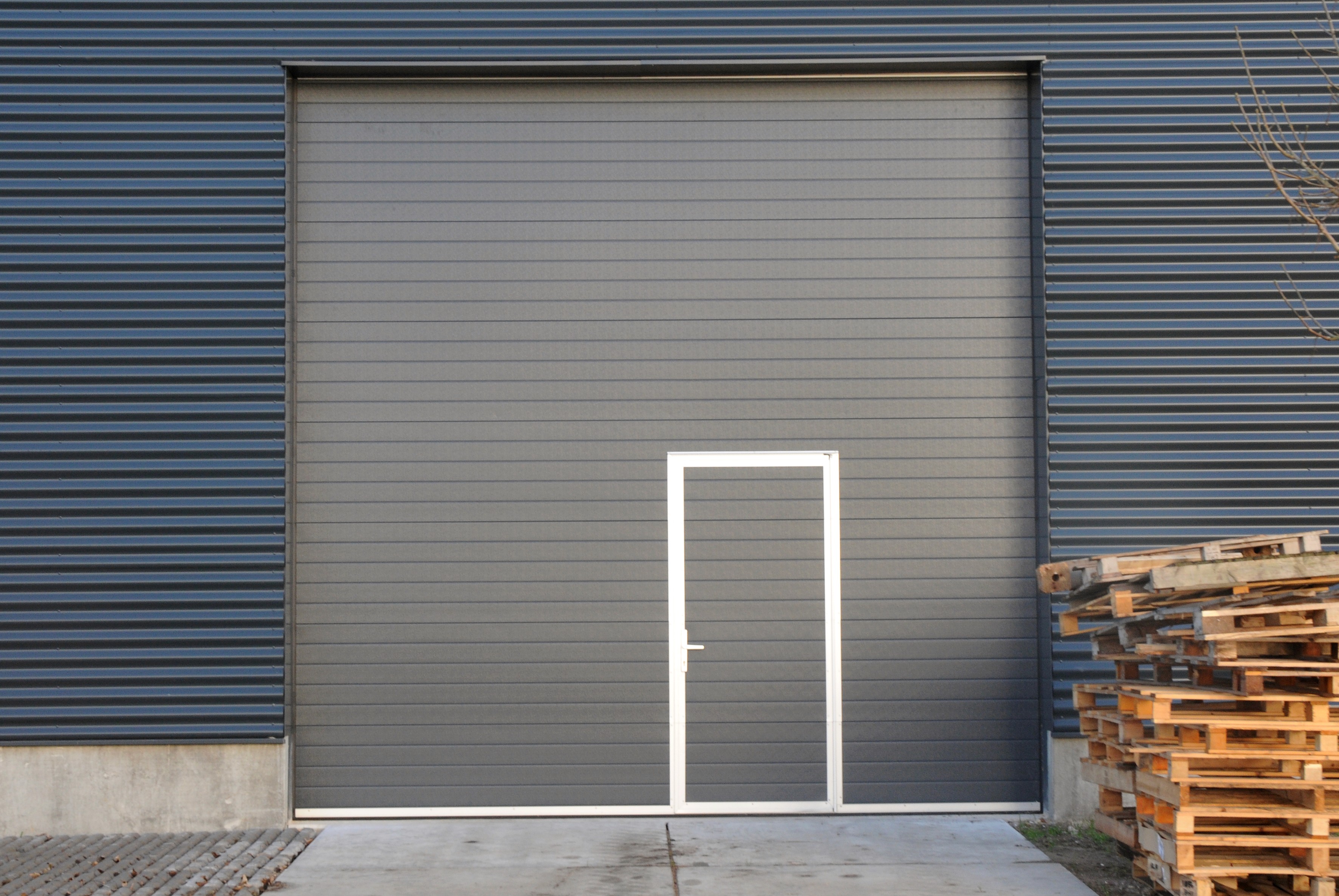

Pass door option | Yes – with low threshold |
Compatible Drive Systems | Manual, chain hoist, or electric (Pro-Line drive) |
Compliance | CE-marked, EN 13241 |
Optional Features
Low-threshold pass door
Extended safety options (Spring break safety device, Cable break safety device, Slack cable detection, Safety edge and/or light curtain for motorised versions)
Heavy-duty configurations (Reinforced panel structure and torsion springs for high-frequency use or large-format doors)
RAL colour customization
Panel surface finish options (Stucco with horizontal ribs - standard, Microline 16 mm - optional for a sleek, modern appearance)
