Robust and reliable steel structure
Fast, safe and economical loading
Reduction of heat loss in the storage room
Weather-protected goods-handling area
PVC material resistant to weather conditions and mechanical action
Easy installation
Possibility to adapt the product to customer requirements
Technical data | Specification |
|---|---|
Nominal height (NH) | 3400 mm |
Nominal width (NW) | 3400 mm |
Nominal depth (ND) | 600 mm |
Upper skirt | 1000 mm |
Side Skirt | 600 mm |
Standard colour | black |
SCOPE OF APPLICATION

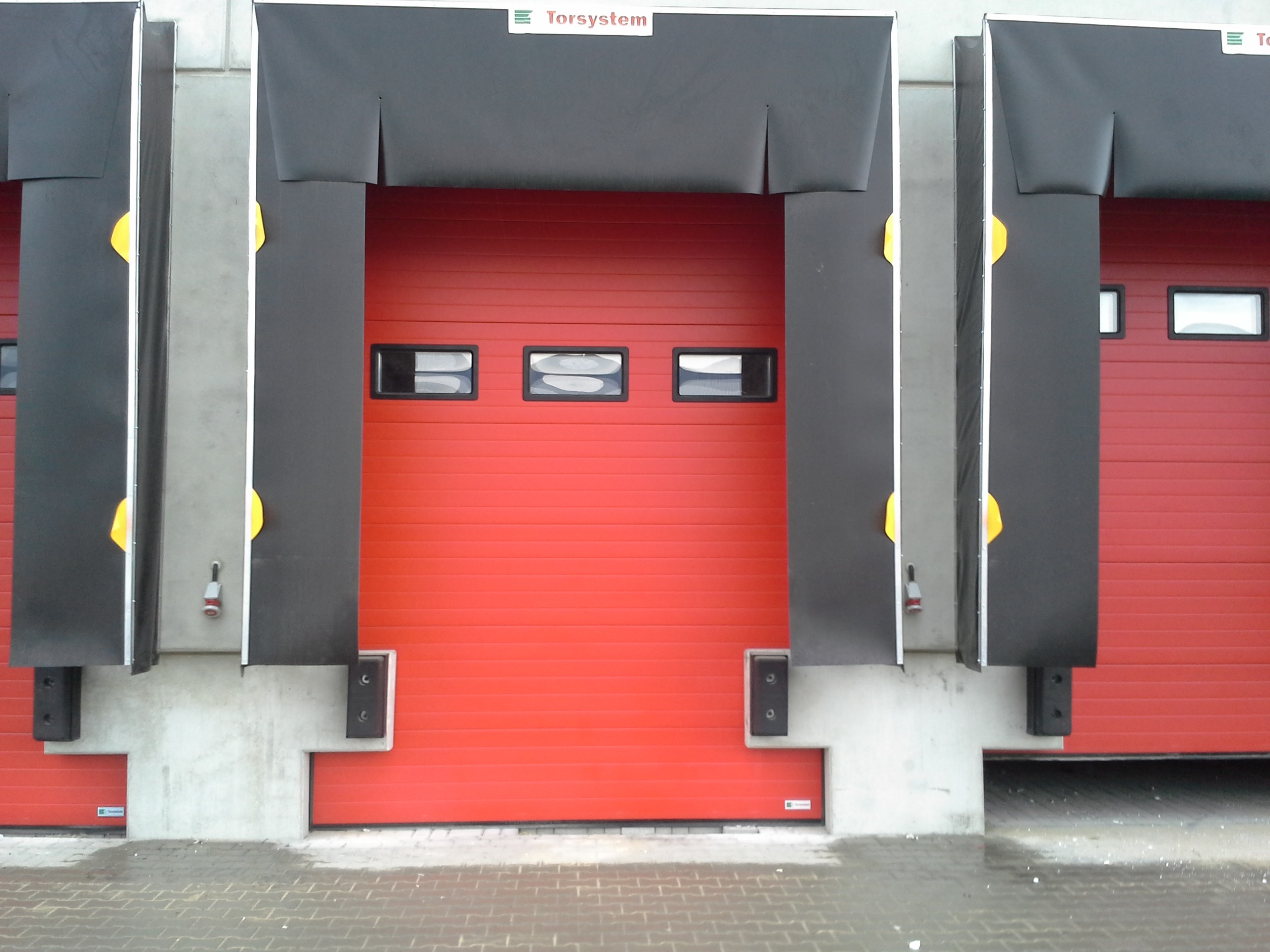

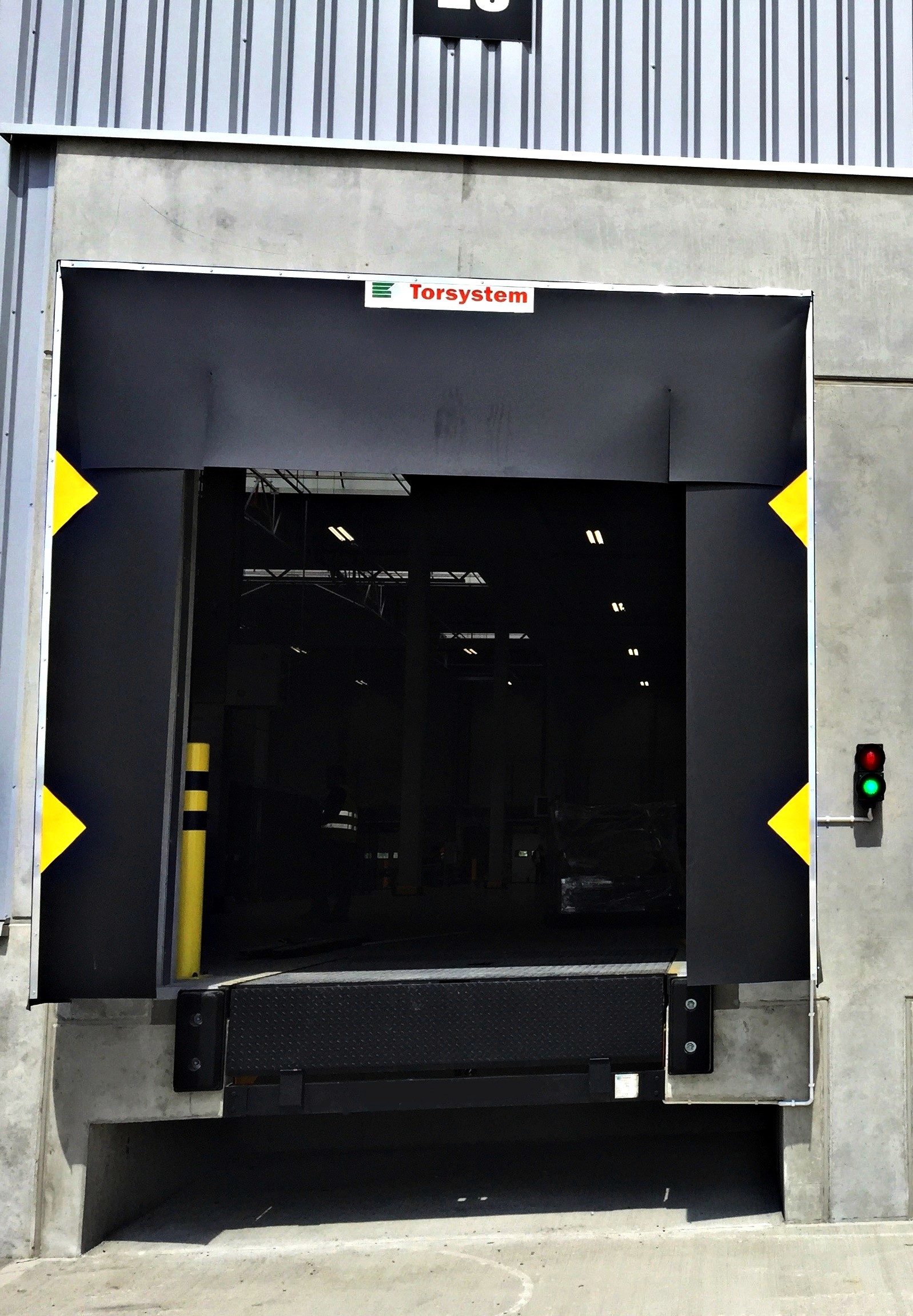

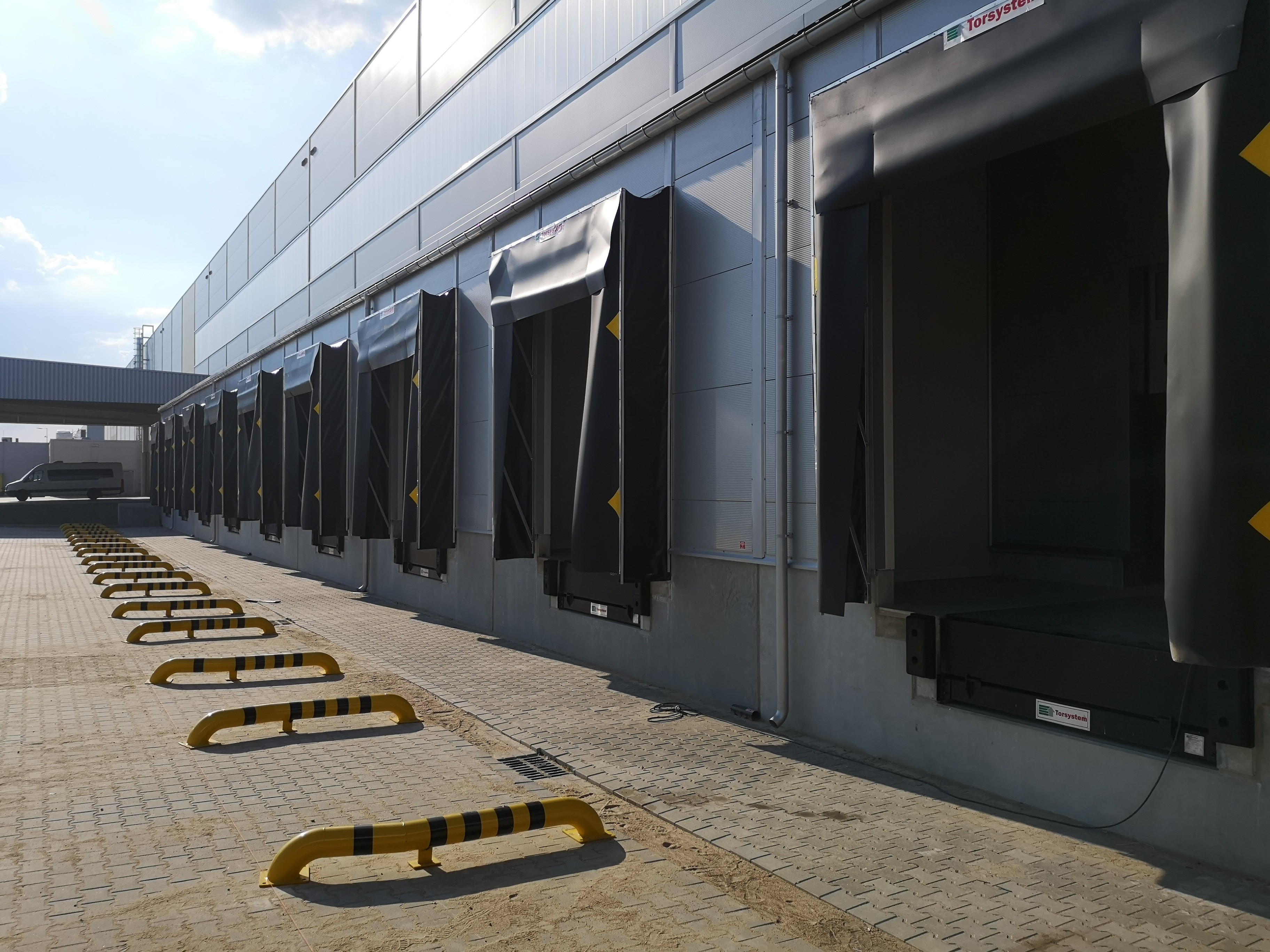

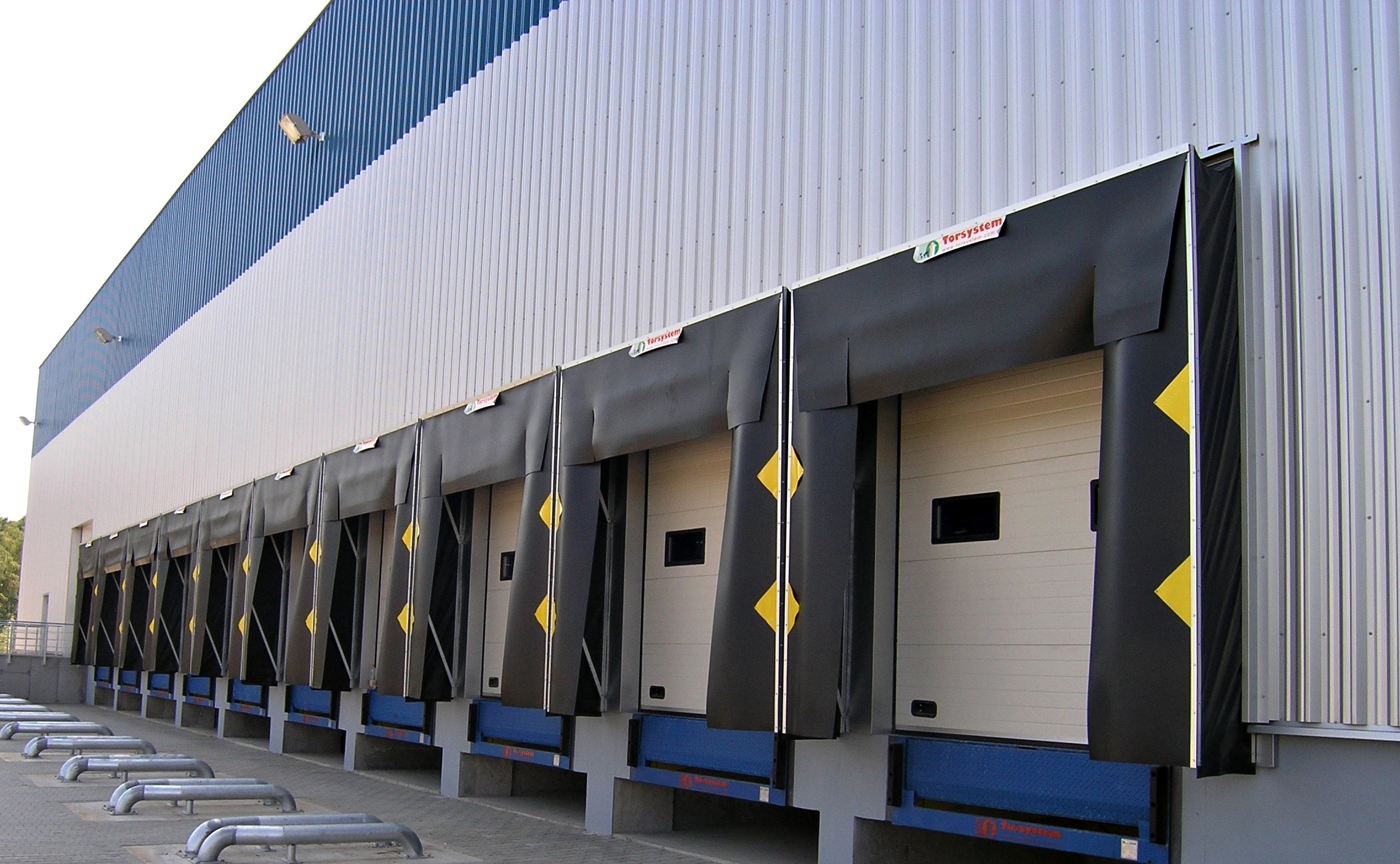

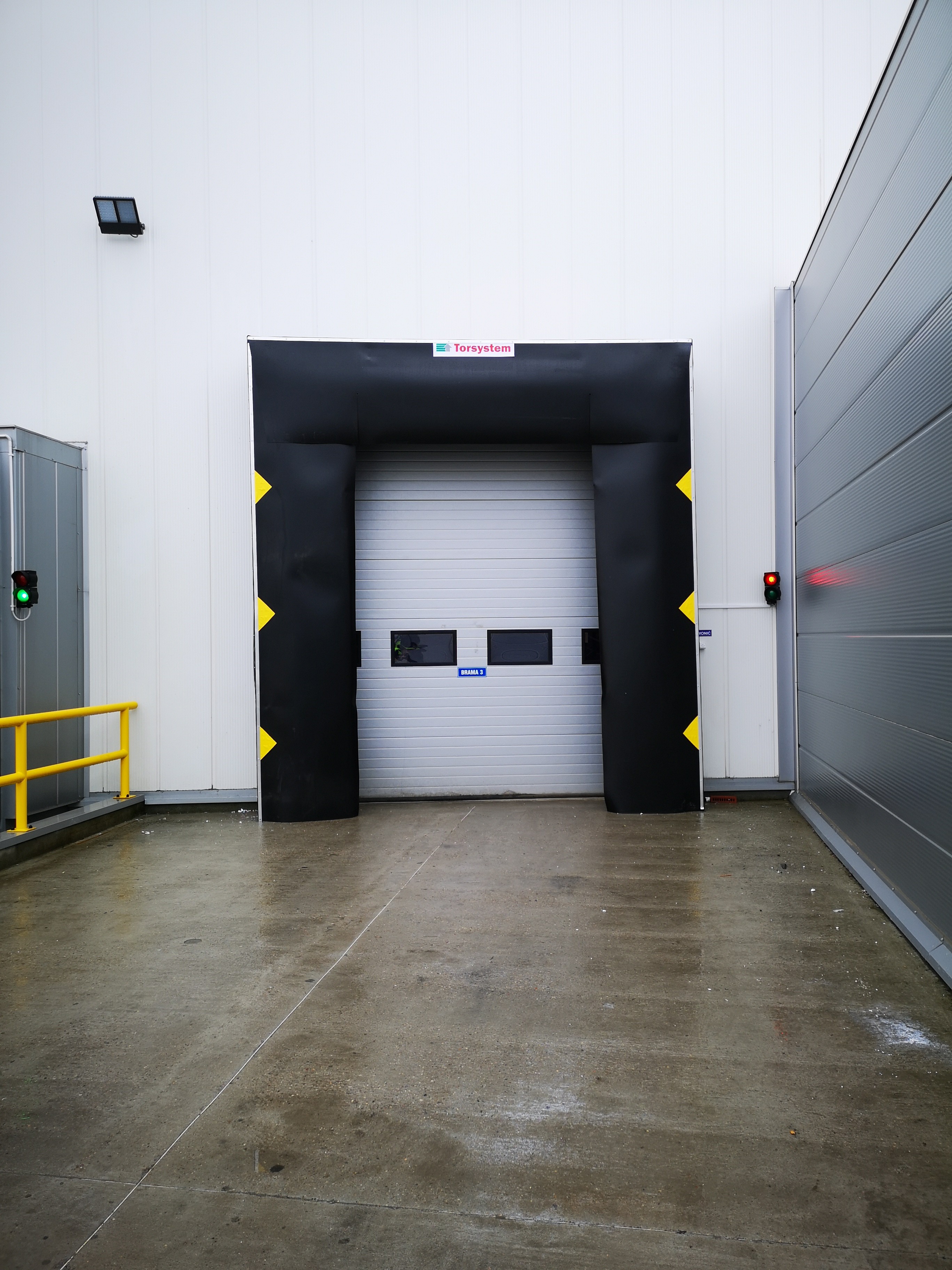

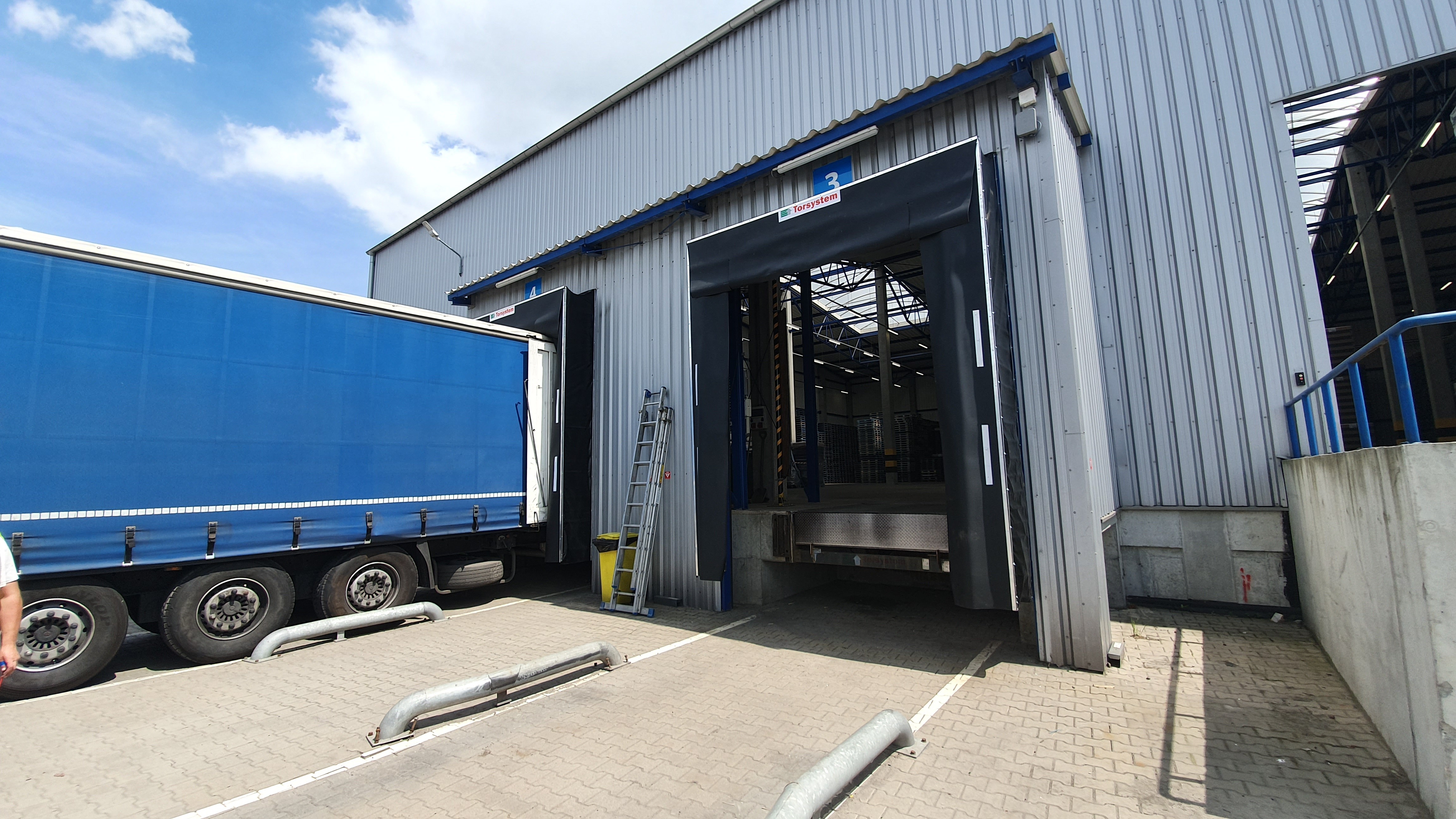

The AMTR-U dock shelter is designed for sealing a lorry trailer at a loading bay. Thanks to the integration with the dock leveller, there is no need for additional elements to protect the goods to be handled. The primary task of the seal is to reduce the impact of adverse weather conditions on the work in the warehouse.
OPTIONS
Special dimensions,
Various side and top skirt dimensions.
FEATURES
The skirt ( upper and side) is made of 3 mm thick, three-layer PVC material, reinforced with fabric, resistant to atmospheric conditions and mechanical operation
Pitched roof with a gutter
Spring construction of the roof and sides
Roof structure rising under frontal pressure
Supporting structure made of light hot-dip galvanised steel profiles
Load-bearing structure consisting of two frames joined together by four articulated arms and a PVC mantle
Protection of the edge of the seal with an aluminium profile
White warning stripes on front skirt
