Robust steel structure
Bolted structure
Quick and safe loading
Additional protection
Reduction of heat loss in the storage room
Energy saving
Weather-protected goods-handling area
Possibility of opening the trailor's door after docking
GENERAL INFORMATION
The AMTRD-ESS loadhouses are an economical and ergonomic alternative to conventional loading bays inside a warehouse. The structure is assembled by bolting together ready-made components, without the need for welding.
This universal solution can be used for all types of platforms and door seals. It is possible to adapt the loadhouse to different types of thermal insulation of the bay, to line up several loadhouses with common structural elements. The loadhouses are designed to equip new developments as well as to modernise existinng facilities. The loadhouses allow dock levellers to be used if it is not possible to install them in a hall.

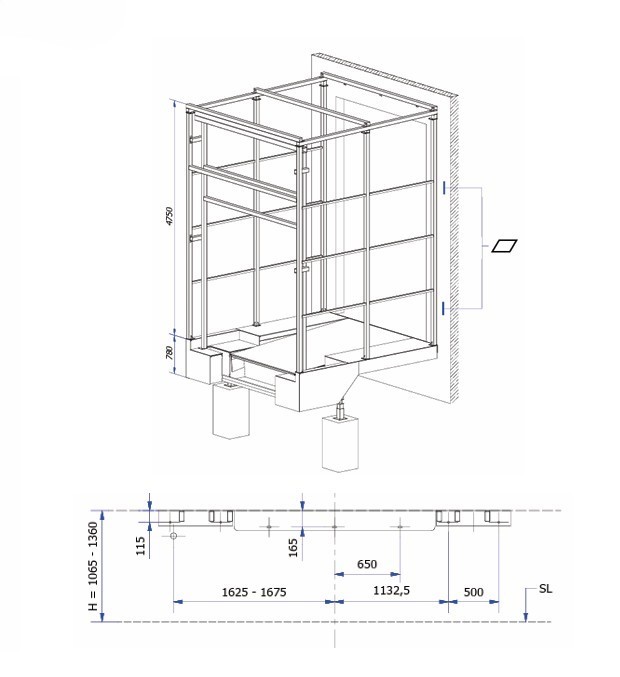

The AMTRD-ESS loadhouse consists of a load-bearing frame set on adjustable feet and a superstructure. It features two immovable side platforms covered with corrugated 6/8 sheet metal. The integrated additional brackets make it easy to mount any platform of your choice.
Technical data | Specification |
|---|---|
Nominal length | 3000 mm |
Nominal width | 3500 mm |
Structural height (bottom structure + upper structure) | 1065 - 1360 mm (down) + 4750 (up) |
Load bearing capacity | 6 tonnes (60 kN) |
Step dock height | 200 mm |
Step dock length | 1250 mm |
Water discharge | trough the fornt edge |
Maximum wind resistance | (Eurocode 3) 0.84 kN/m2 |
Maximum resistance to snow pressure | (Eurocode 3) 2.00 kN/m2 |
Sheet thickness | 6/8 mm |
Standard colours | RAL 9005 |
ADDITIONAL OPTIONS
the whole structure or its individual components can be painted in a different RAL colour than the standard one or hot-dip galvanised,
the design of the loadhouse is adapted to accommodate a pneumatic seal,
powder coating.
