Robust steel structure
Bolted structure
Quick and safe loading
Additional protection
Reduction of heat loss in the storage room
Energy saving
Weather-protected goods-handling area
Optional angled positioning
Improved working comfort
Possibility to adapt the product to customer requirements
GENERAL INFORMATION

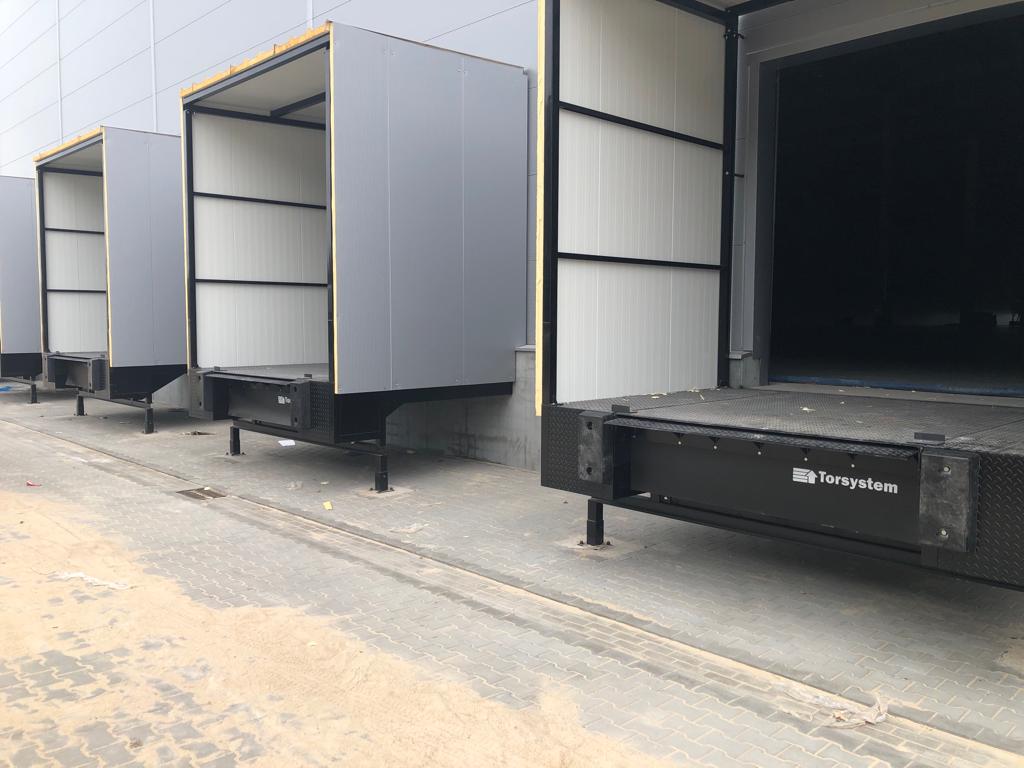

The AMTRD- PRO loadhouses are an economical and ergonomic alternative to conventional loading bays inside a warehouse. The structure is assembled by bolting together ready-made components, without the need for welding. This universal solution can be used for all types of platforms and door seals.

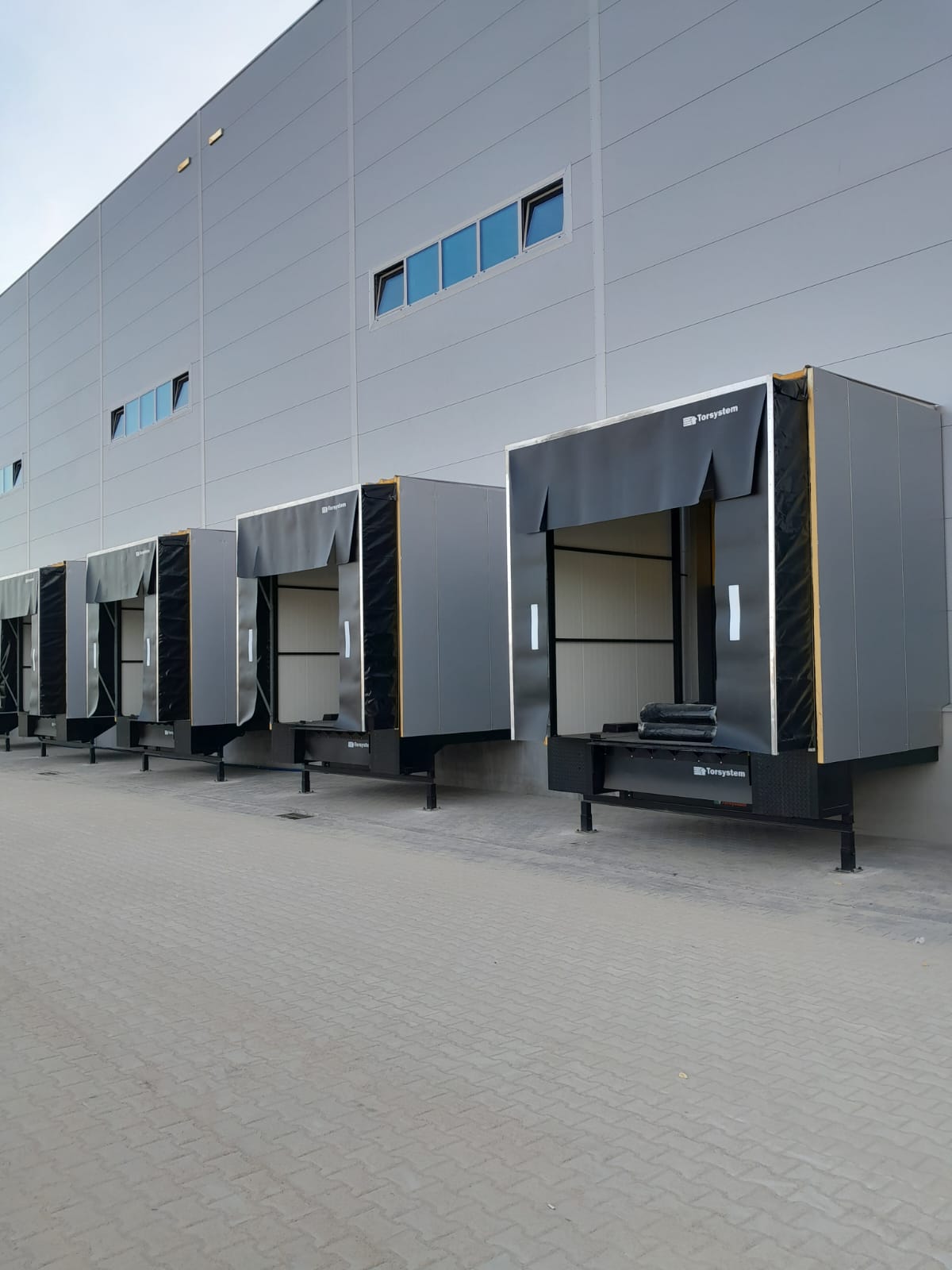

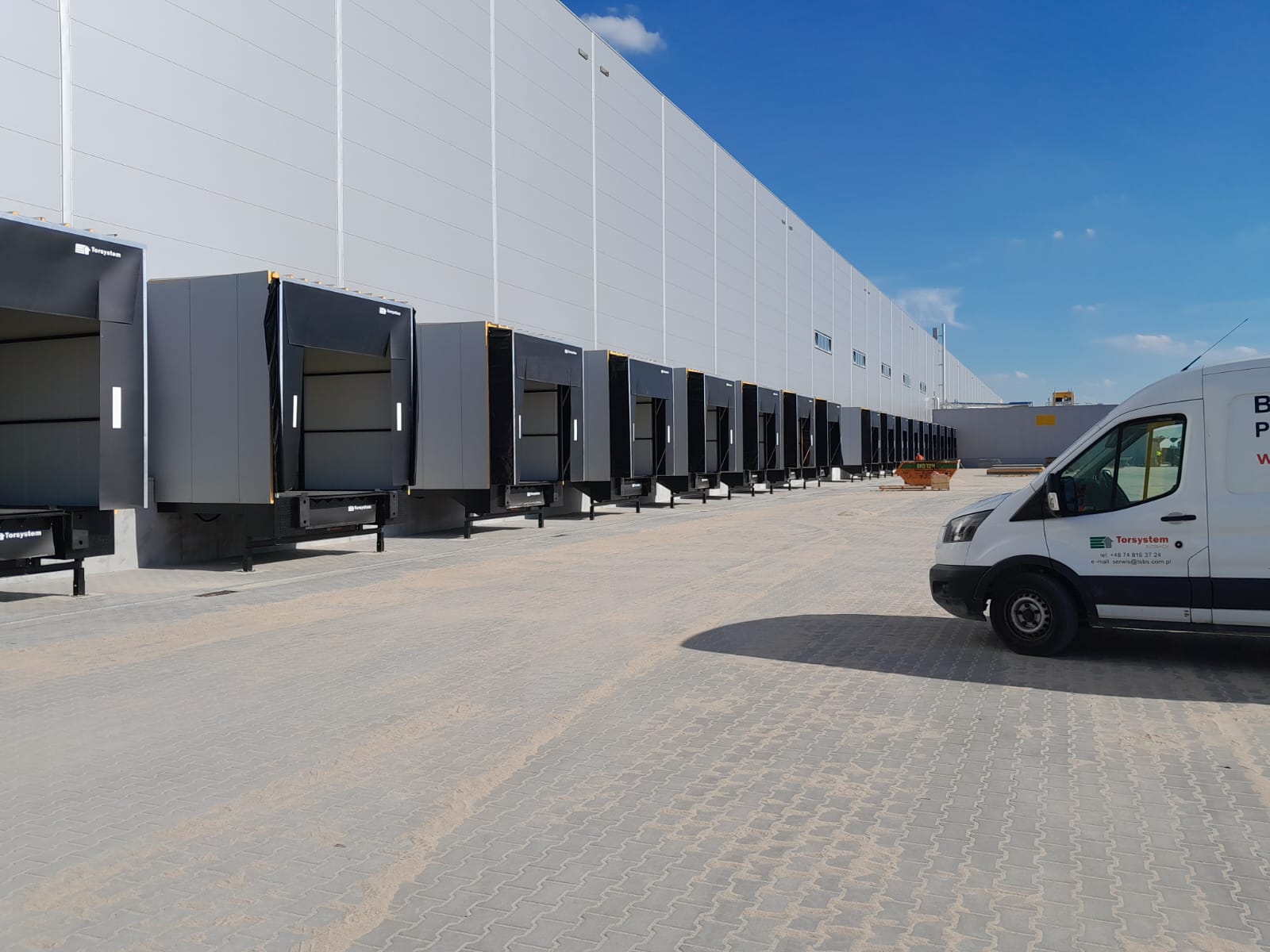

It is possible to adapt the loadhouse to different types of thermal insulation of the bay, to line up several loadhouses with common structural elements or to position them at an angle to the building. The loadhouses are designed to equip new developments as well as to modernise existing facilities. The loadhouses allow dock levellers to be used if it is not possible to install them in a hall.

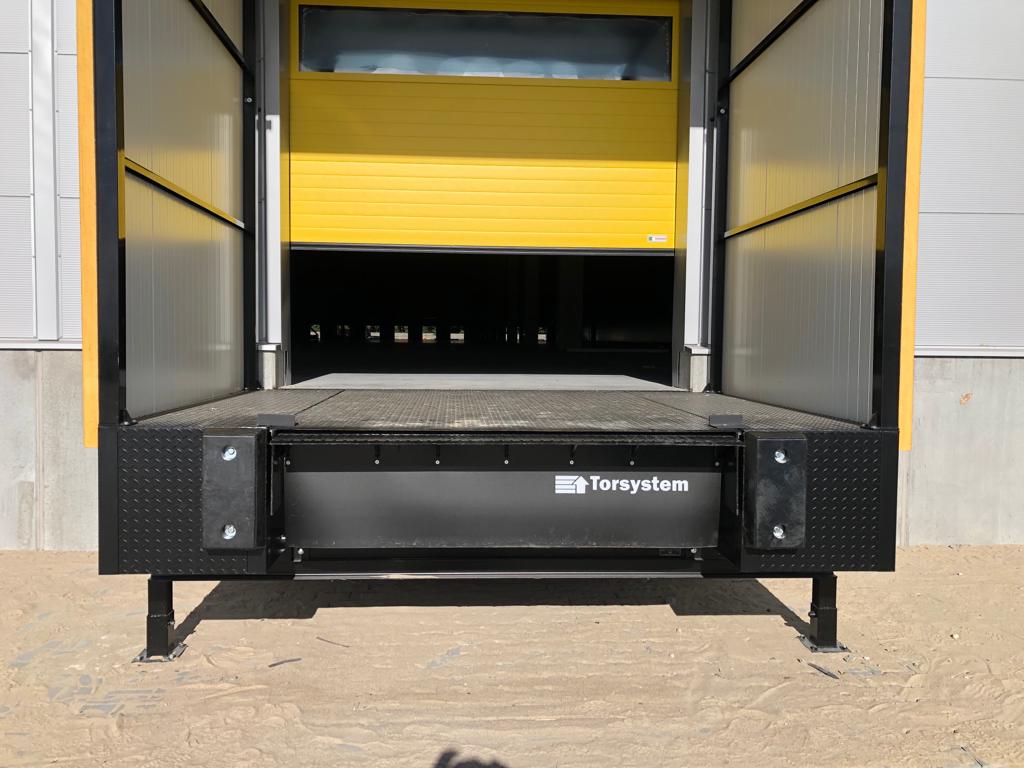

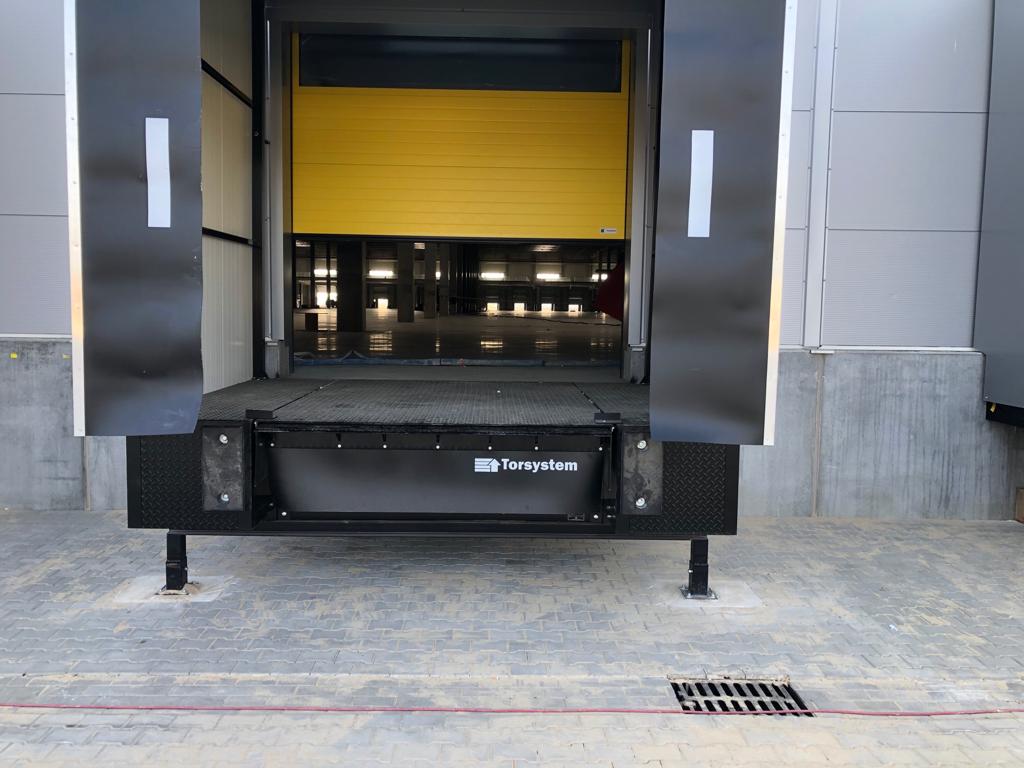

The AMTRD-PRO loadhouse consists of a load-bearing frame set on adjustable feet and a superstructure. It features two immovable side platforms covered with corrugated 6/8 sheet metal. The integrated additional brackets make it easy to mount any platform of your choice.

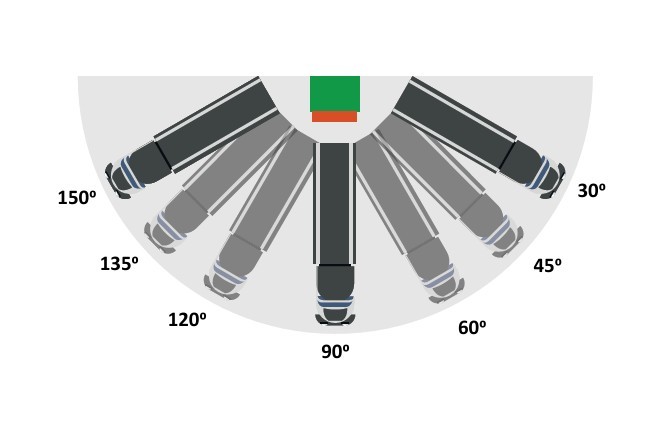

The positioning ranges of the loadhouse are: 30, 45, 60, 90, 120, 135, 150 degrees.
Technical data | Specification |
|---|---|
Nominal length | 2000, 2500, 3000, 3500, 4000, 4500 mm |
Nominal width | 3400, 3500 mm |
Structural height | 1065 - 1360 mm |
Load bearing capacity | 6, 10 tonnes (60, 100 kN) |
Water discharge | through the front edge |
Maximum wind resistance | (Eurocode 3) 0.84 kN/m2 |
Maximum resistance to snow pressure | (Eurocode 3) 2.00 kN/m2 |
Sheet thickness | 6/8 mm |
Standard colours | RAL 9005 (two-component resin-based paint) |
ADDITIONAL OPTIONS
The loadhouse house can be adapted to the individual needs of the project,
the whole structure or its individual components can be painted in a different RAL colour than the standard one or hot-dip galvanised,
30, 45, 60, 90, 120, 135, 150 degree angled positioning of the loadhouse,
range of standard or reinforced wheel stops to absorb the impact of docking vehicles, th
e design of the loadhouse is adapted to accommodate a standard seal or a inflatable seal,
adjustment of design for inflatable seal AMTR-P,
powder coating.
